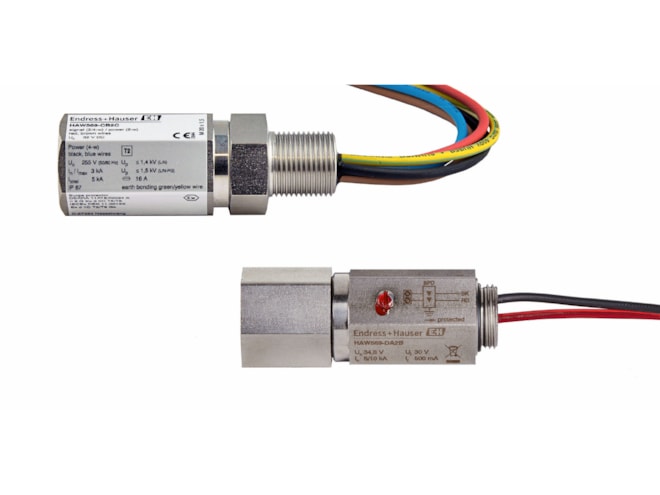

E+H HAW569 Surge Protector

Overtoltage protection with direct and indirect shield grounding. Optional certifications for ATEX and SIL 2.

Starting at $346.27
Effective August 22nd, 2025, Endress+Hauser has added a 8.4% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 2-3 weeks
Product Specs

Features

  • Overvoltage protection in signal cables, communication and power lines
    • (simultaneous protection with Ex d configuration)
  • Operating voltage(s): 24V/120V/230V
  • Automatic reset after discharge process
  • Flexible integration
  • Field mount ready
  • No additional cable entry required for lead-through configuration
  • Impedance-free
  • ATEX, IECEx, CSA, SIL 2 certifications available
  • Extended 5-year warranty, please contact an engineer for details

The E+H HAW569 Surge Protector provides protection from overvoltage in signal cables, communication and power lines. The HAW569-CB2C can be utilized for simultaneous protection of all three with the Ex d hazardous area certification. Ex ia and SIL 2 certifications are also available. When field mounted with a 4-wire device, functionality is not impacted by voltage drops due to the impedance-free connection of the HAW569. Suitable for use in various industries including: process automation, measuring/communication technology within chemical, pharmaceutical, water and waste water sectors, as well as the food industry.
