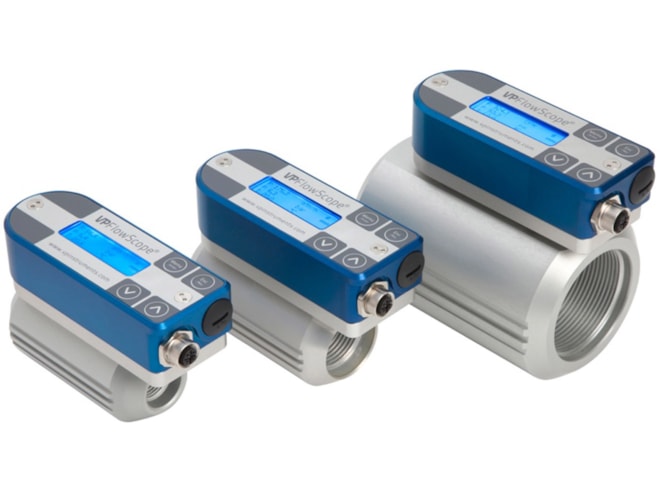

VPInstruments VPFlowScope In-Line Flow Meter
Point of use flow meter designed for compressed air and other industrial gases providing bi-directional flow, pressure, temperature, and total.
Effective September 2, 2025, VPInstruments has added a 15% surcharge to this product. The surcharge will appear as a separate line item on the order.
-
Some models in stock. View available part numbers.
Overview
Features
- Flow range:
- 0.5in: 0.13 to 50scfm
- 1in: 0.54 to 150scfm
- 2in: 2.15 to 600scfm
- Electrical:
- Power supply: 12 .. 24 VDC ±10%
- Power consumption: 2.4 W (no flow), 4.8 W (full flow) ±10%
- Connection: M12 5-pin female connector, optional USB mini
- Pressure rating: 250psi max
- 500psi pressure upgrade sold separately
- Gases: Compressed air, nitrogen, oxygen, and CO2 inert
- Temperature range: 0 to 140°F
- Display: 3-line LCD with blue backlight
- Data logger: Optional 2 million data point memory
- Certifications: UL/ CUL 14 AZ, CE/ EN 61326-1 (Class A), EN61000-6-1
- Bi-directional sensitivity available (sold separately)
- Inlet and outlet tubing kit (sold separately)
- VPInstruments Software & Firmware downloads page
What's in the Box
- ISO Calibration Report
- mini-USB Cable (display models only)
Description
The VPInstruments VPFlowScope In-Line Flow Meter is designed for precise point-of-use consumption measurement in compressed air systems. It simultaneously measures mass flow, temperature, and pressure in both directions, making it suitable for both air and gas flow measurement. Beyond measurement, the VPFlowScope In-Line helps assess distribution network efficiency and potential cost savings, providing essential data for informed decision-making.
The optional three-line display allows the user to see the real-time data. Combining this instrument with the data logger enables recording for certain periods of time. When you install our VPStudio software on your PC, you can process data, print reports, and make smart analyses to find out where and how you can save money in your organization.
Documents
Accessories
Required Components
These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.
Accessories
Please consider these optional accessories.
Applications
This product can be used in the following applications:
In Stock
| Part Number | Price | Available | |
|---|---|---|---|
|
VPS.R080.M050.D11 |
$1,417.00 | 2 in stock | |
|
VPS.R250.M100.D11 |
$1,501.00 | 2 in stock | |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
