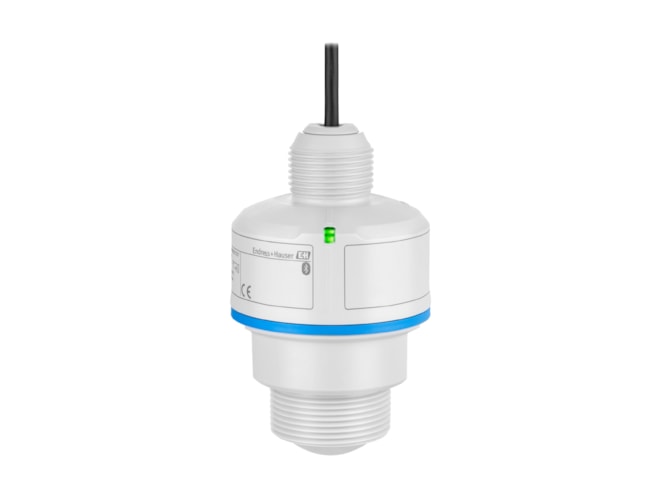

E+H Micropilot FMR10B Radar Level Sensor

Free-space radar with continuous non-contact level measurement and 80GHz technology. Bluetooth enabled operation.

Starting at $750.39
Effective August 22nd, 2025, Endress+Hauser has added a 8.4% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 2-3 weeks
Product Manual Product Specs

Features

  • Accuracy: +/- 5mm (0.2in)
  • Process temperature: -40 to 60°C (-40 to 140°F)
  • Process pressure/overpressure limit: -1 to 3bar (-14.5 to 43psi)
  • Measurement distance: 10m (32.8ft) max
  • Main wetted parts: PVDF, PBT/PC
  • Communication: 2-wire (4 to 20mA)
    • Bluetooth operation optional
  • Frequency: W-Band (80GHz)
  • LED Status indicator
  • Process Connection:
    • Cable entry: 1in G, 1in NPT
    • Antenna head: 1-1/2in G, 1-1/2in NPT
  • Protection rating: IP66/68 / NEMA Type 4X/6P
  • Extended 5-year warranty, please contact an engineer for details

The E+H Micropilot FMR10B Radar Level Sensor is a compact radar sensor designed for monitorization of liquids and solids in waste, wastewater, and various other utilities and industries. The Micropilot FMR10B provides continuous non-contact level measurement with 80GHz technology, and Bluetooth enabled operation via the SmartBlue app. Each unit comes with a standard-issued cable of 10m (32ft). Process connections for the cable entry and antenna head are offered in G or NPT thread. Installation of the sensor is quick and easy to complete with guided setup.

Applications:

  • Open basins
  • River monitoring
  • Storage tanks
  • Silos
  • Stockpiles
