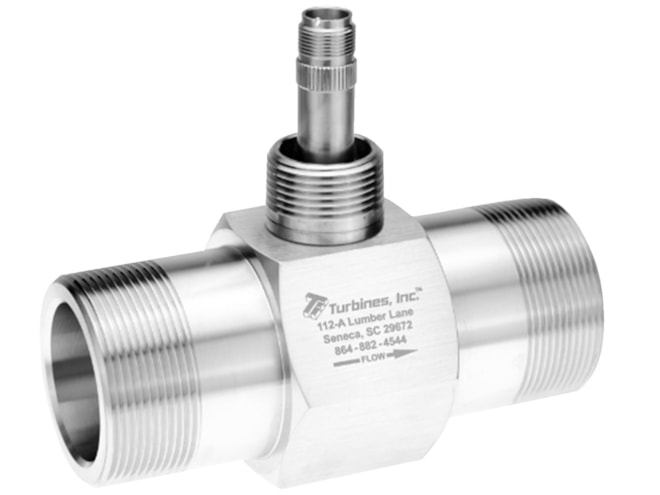

Turbines, Inc. HA Series High Accuracy Turbine Flow Meter
Stainless steel construction, .5 to 4in diameters available. 1 to 1250gpm flow rates. NPT and flanged connection types.
Starting at
$1,264.38
Manufactured
Includes
Availability
Overview
Features
- Linearity is +/- 0.5% over the standard flow range (for +/- 0.25%, available upon request)
- Operating temperature: -450 to 450°F
- Up to 850°F with a special coil (sold separately)
- Flow rate: 1 to 1250gpm
- Connections:
- NPT, flange (wafer, 37° AN Flare, and BSP available upon request)
- Calibrated retrofit kits and factory refurbishment are available
- Material(s):
- Meter body: 316 stainless steel
- Meter rotor: 17-4PH, Nickel 200, Duplex Stainless steel
- Bearings:440C Stainless steel and hybrid ceramic ball bearings, hard carbon composite
- Additional materials available
- CRN certified, ISO 9001 compliant, and features NIST traceable calibration
Description
Turbines, Inc. HA Series high accuracy turbine flow meter is a highly accurate and durable turbine flow metering device, designed to provide precise measurement in industrial and commercial applications. Calibrated with state-of-the-art equipment, this flow meter ensures long-lasting performance and reliability.
Equipped with advanced electronic monitoring capabilities, the device supports a wide range of configurations and customizations to meet diverse operational requirements. Its robust construction makes it suitable for harsh environments, offering dependable functionality in applications where precision and resilience are critical.
Turbines, Inc. Flow Meter Applications:
- Industrial fluid measurement
- Oil and gas pipelines
- Chemical processing
- Water and wastewater treatment
