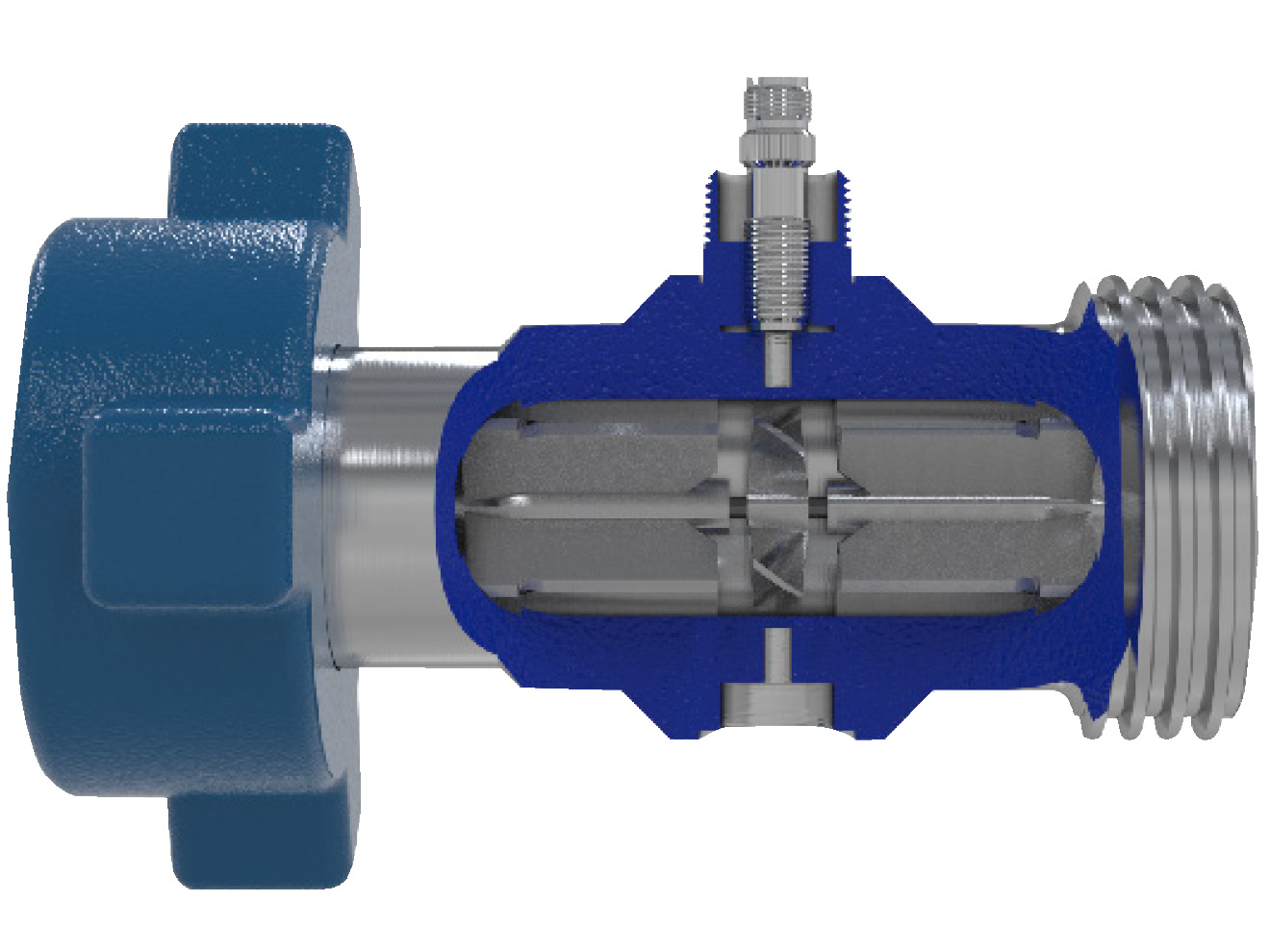

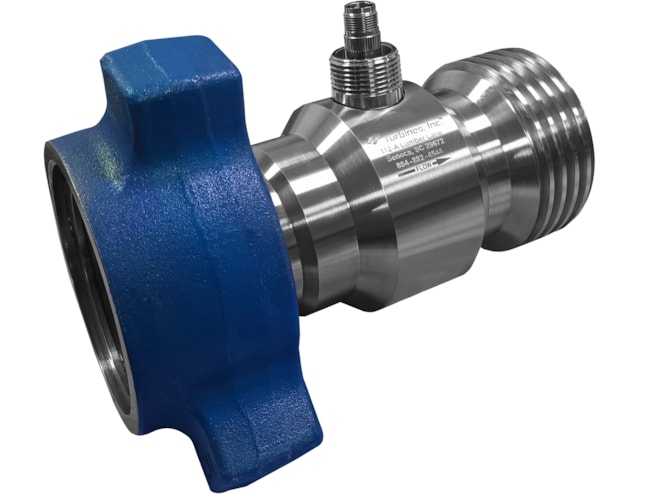

Turbines, Inc. HP Series High Pressure Liquid Turbine Flow Meter

Featuring ±1% linearity, robust stainless steel construction, flow rates from 15–600 GPM, and thread x wingnut or thread x thread connections.

Starting at $6,614.88

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • Linearity: ±1% over flow range
  • Repeatability: ±0.10% over flow range
  • Operating Temperature: -100°F to +250°F (Standard),
    • Up to 850°F with a special coil (sold separately)
  • Connections: Thread by WingNut and Thread by Thread
  • Flow Rate: 15 to 600 GPM
  • Material(s):
    • Meter Body: A286 stainless steel
    • Rotor Supports: 316 stainless steel
    • Meter Rotor: CD4MCu
    • Rotor Shaft: Tungsten carbide
    • Sleeve Bearings: Tungsten carbide
  • Full line of economical Retrofit Kits available (available upon request)
  • CRN Certified, ISO 9001, NIST traceable calibration

The Turbines, Inc. HP Series high pressure liquid turbine flow meter is designed to deliver ±1% linearity and ±0.10% repeatability over the flow range, with operating temperatures from -100 to 250°F. This series offers flow rate ranges from 15 to 600gpm. Constructed with premium materials, including an A286 stainless steel meter body, CD4MCu rotor, and tungsten carbide rotor shaft and bearings, the HP Series flow meter offers exceptional durability and corrosion resistance. The rotor supports are made from 316 stainless steel, ensuring reliable performance under challenging operating conditions. Connections are available in Thread x WingNut or Thread x Thread configurations for ease of integration into existing systems. All flow meters are CRN certified, ISO 9001 compliant, and calibrated with NIST traceability for assured accuracy and quality.


Turbines, Inc. Flow Meter Applications:

  • Oil and gas processing
  • Chemical processing
  • Water and wastewater management
  • Power generation
  • Industrial manufacturing
Turbines, Inc. FML250 Liquid Flow Monitor
Turbines, Inc. FML250 Liquid Flow Monitor

Precise flow measurement with keypad programming, LCD display, and 2 to 40 point linearization. Battery-powered with auto K-factor correction and output simulation.

Mfg. has some models in stock
Starting at $560.23

Manufacturer Stock

Part Number Price Available
HP-TM0200-SI
Show Configuration
$6,614.88 8 in stock
HP-TM0300-TXT
Show Configuration
$6,255.09 6 in stock
HP-TM0200L
Show Configuration
$6,614.88 3 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
