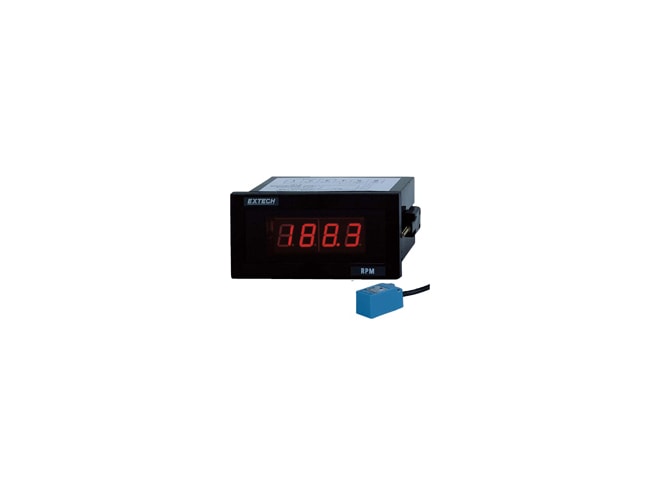

Extech 461950 Panel Tachometer

1/8 DIN panel tachometer continuously and accurately reads from 5 to 99,990 RPM.

Starting at $219.00 Found a better price? Let us match.

View Company Reviews
Manufactured
Includes
Availability

Features

  • Measure rpm from 5 to 99,990 RPM with microprocessor quartz crystal accuracy of 0.05%
  • Large LED display updates 1/sec (RPM < 60)
  • Resolution: 0.1 RPM (5 to 1000 RPM), 1 RPM (1000 to 999 RPM), 10 RPM (10,000 to 99,990 RPM)
  • Unique design permits rpm measurements of a one hole gear or disk eliminating the need for special gears
  • Optional proximity and photo sensors

The Extech 461950 panel tachometer is a 1/8 DIN panel mounted instrument that measures rotational speeds from 5 to 99,990 RPM while offing a basic accuracy of ±0.05%. The Extech 461950 panel tachometer features a 4-digit LED display that updated every second. The Extech 461950 panel tachometer also features a unique design that allows you to measure the RPM for a one hole gear or disk, which eliminates the need for specially configured gears.

The Extech 461950 panel tachometer is compatible with either of two sensor pickup types: a proximity sensor designed for target distance of 0.1" (3mm)and covering a range to 36,000 RPM (600Hz); or a photoelectric sensor with a target distance of 0.4" (10mm) and a range to 15,000 RPM (250Hz). Both sensors are encapsulated and come with a 6' cable. They are available as accessories for the Extech 461950 panel tachometer.

Manufacturer Stock

This stock is typically available to ship in 3 - 5 working days.

Part Number Price Available
461950
Show Configuration
$219.00 50 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-5 business days". Click here to select options
