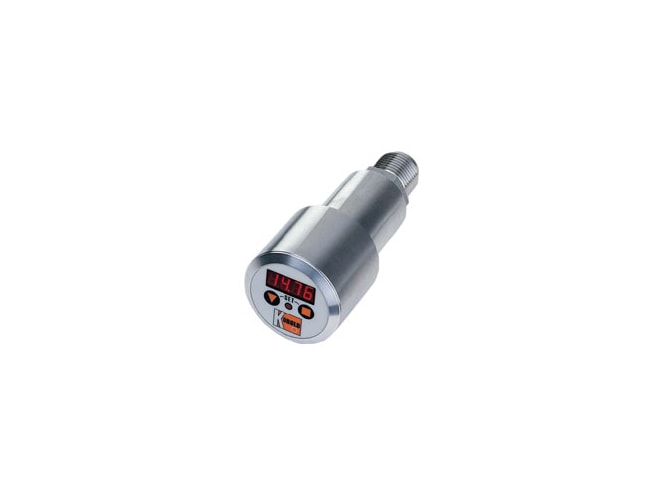

Kobold PDD Series Pressure Switch
Very versatile, simple to operate digital pressure switch.
- By Kobold
-
Manufacturer has some models in stock. View available part numbers.
Overview
Features
- 0-30" Hg vacuum to 0-5800 PSIG
- LED display
- ±0.5% of full scale accuracy
- Piezo-resistive ceramic sensor
- -4 to 176°F process medium temperature range
- -4 to 140°F ambient operating temperature range
- 304 stainless steel housing material
- Transistor NPN or PNP switch type
Description
The Kobold PDD series digital pressure switch integrates the latest solid state sensing technology into a very versatile, simple to operate package. Programming features include setpoint, reset point, window mode, pulsation dampening, switch logic, zero (tare) adjustment and user settable lockout code.
The ceramic sensing system and solid state transistor switch ensure an exceptionally long cycle life with virtually no calibration drift. These features, along with the compact, robust stainless steel package make the PDD an ideal choice for OEM applications.
Documents
In Stock
Manufacturer Stock
This stock is typically available to ship in 2 - 3 working days.
| Part Number | Price | Available | |
|---|---|---|---|
|
PDD-153N2P025 |
$606.00 | 2 in stock | |
|
PDD-153N2P095 |
$606.00 | 2 in stock | |
|
PDD-153N4P065 |
$606.00 | 2 in stock | |
|
PDD-153N2P085 |
$606.00 | 1 in stock | |
|
PDD-153N4P095 |
$606.00 | 1 in stock | |
|
PDD-253N4P125 |
$606.00 | 1 in stock | |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks. Call for expedite options". Click here to select options
Need Help? Call a Flow engineer at 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
