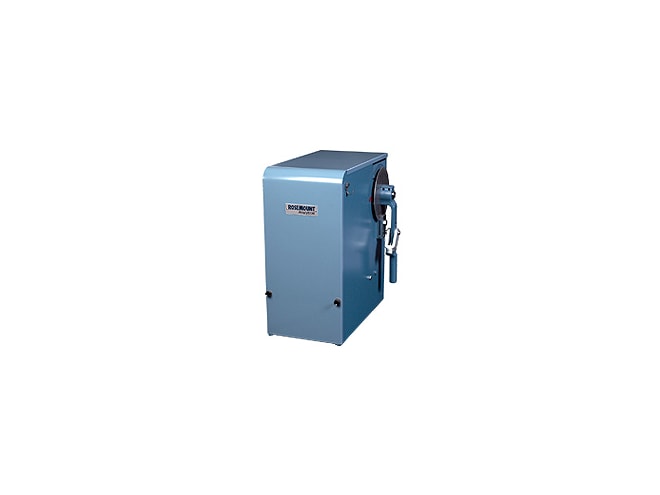

Rosemount 4x5 Torque Type Power Positioner

Hagan 4x5 torque type floor mount damper drive, wall, swivel or floor mounting.

Looking for spare parts and replacement parts? View the Product Accessories tab below.

Select options for pricing

Effective April 15th, 2025 Rosemount has added a 5.4% surcharge for all of their products. The surcharge will appear as a separate line item on the order.


View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 2-4 weeks
Product Manual Product Specs

Features

  • Wall, swivel or floor mounting
  • Repeatability: 1-0% of full stroke
  • Dust cover and internal heater
  • Limit switches and position transmitters
  • Power air supply
  • Internal air locking system
  • Stall Torque: 4600 ft.-lbs (6238 N.m)
  • Maximum Friction Load: 1100 ft.-lbs (1492 N.m)
  • Maximum Allowable Weight Load: 1600 ft.-lbs (2170 N.m)

The Rosemount Rosemount Analytical 4x5 Torque Type Power Positioner accepts standard pneumatic signal ranges and produces a 0 to 80° proportional shaft rotation. The options available include analog position transmission and/or contact closure for remote use, and position lock up on power air supply failure.

Applications for the 4x5 Torque Type Power Positioner include:

  • Steel mills
  • Refineries
Rosemount 1A97805G02 Spare Parts Kit
Rosemount 1A97805G02 Spare Parts Kit

Spare Parts Kit for the 4x5 Torque Type power postioner .

$734.22
