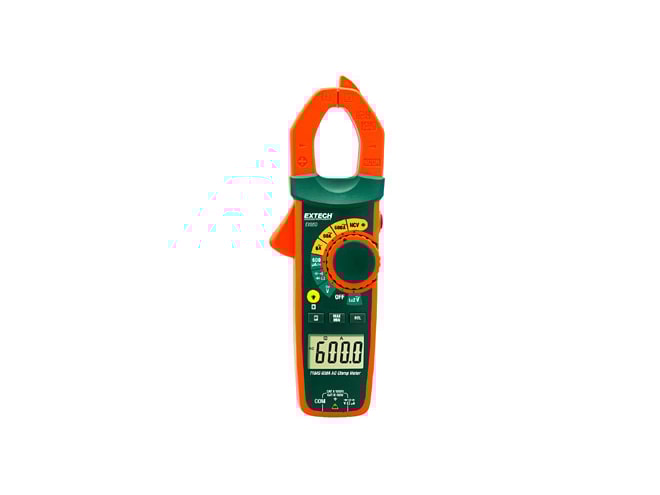

Extech EX655 Clamp Meter

True RMS 600A clamp meter with non-contact voltage detector, low impedance, low pass filter & temperature.

Starting at $174.00 Found a better price? Let us match.

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 3-5 business days
Product Manual Product Specs

Features

  • 60 & 600A AC/DC current
    • 0.01A max resolution
    • ±2.5% accuracy
  • 1000VDC & 750VAC voltage
  • 60MΩ resistance & 60mF capacitance
  • 10Hz to 1MHz frequency
  • -40 to 1832°F (-40 to 1000°C) (Type K)
  • Continuity & diode test
  • 6000 count backlit LCD display
  • DC ZERO mode & LCD trending bargraph
  • Data Hold, MIN/MAX, and relative function

What's in the Box

  • Test leads
  • 3 AAA batteries
  • Temperature probe

The Extech EX655 clamp meter performs 12 functions including AC/DC current. It features a Low Pass Filter (LPF) which attenuates high frequencies to reduce noise for accurate readings of variable frequency drive signals and inrush mode to capture current surges during motor startup. True RMS provides accurate readings when measuring distorted or noisy waveforms and Low Impedance (LoZ) mode eliminates false readings caused by ghost voltages.
