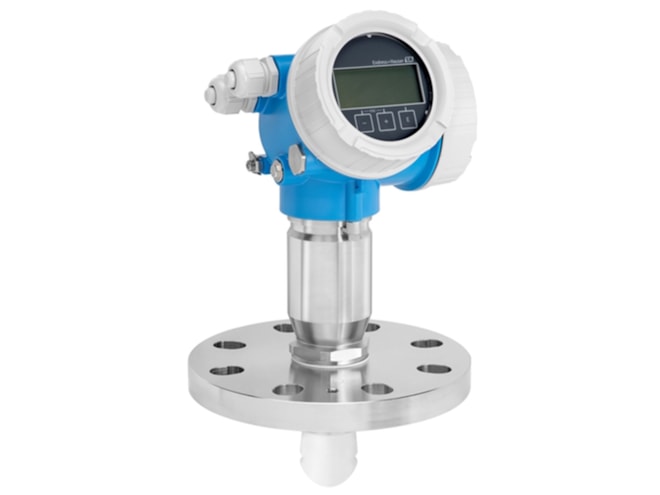

E+H Micropilot FMR60 Radar Level Transmitter
Highest demands in liquid level measurement with 80GHz technology, drip-off antenna, improved algorithms and small beam angle.
Effective August 22nd, 2025, Endress+Hauser has added a 8.4% surcharge to this product. The surcharge will appear as a separate line item on the order.
- By Endress+Hauser
- Made in the USA
Overview
Features
- 80GHz technology
- HistoROM data management
- Innovative drip-off antenna of PTFE
- Threads or flanges process connections
- -40 to 266°F (-40 to 130°C) temperature
- -14.5 to 232 psi (-1 to 16 bar) pressure
- 164ft (50m) maximum measuring range
- 0.04 in (±1mm) accuracy
- 80GHz W-band
- International explosion protection certificates available
Common Use: Process tanks with many obstacles such as agitators, ladders, and fittings.
Description
The E+H Micropilot FMR60 Radar Level Transmitter is the first 80GHz radar developed according to the international functional safety directive IEC 61508. The free space radar offers maximum reliability due to the drip-off antenna, improved algorithms and small beam angle. It is used for continuous non-contact level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors. It also possesses the smart sensor functionality Heartbeat Technology.
