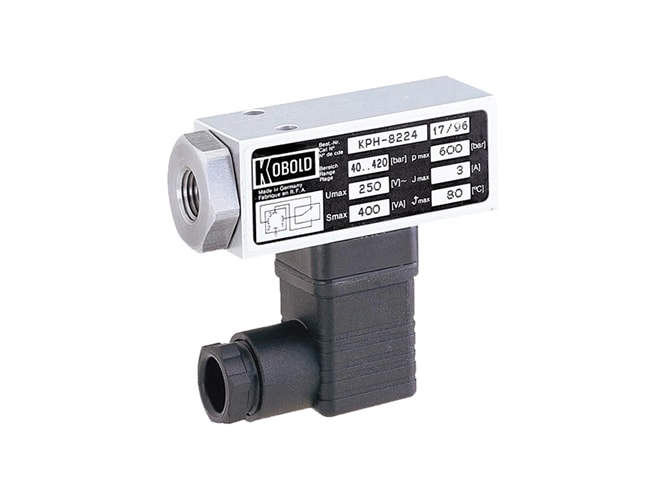

Kobold KPH Compact Pressure Switch
Snap-action SPDT switch with gold plated contacts & ranges from vacuum up to 580 to 6,100 PSIG.
- By Kobold
-
Manufacturer has some models in stock. View available part numbers.
Overview
Features
- Easily adjusted setpoint
- Fixed switch deadband
- ±4% of final value repeatability (±3% for vacuum)
- 1/4" FNPT standard process connection
- G1/4 & 7/16-20 UNF (optional)
- DIN 43650A electrical connection
- Suitable for pneumatic or hydraulic applications
Description
The Kobold KPH compact pressure switch features a snap-action switch with gold plated contacts. Available with low, medium and high pressure ranges, the KPH is designed for a variety of process media including air, gases, lubricating oil and light fuels. Pressure ranges are available from -14 to 0 PSIG (vacuum) up to 580 to 6,100 PSIG, with corresponding burst pressures ranging from 1,150 to 8,700 PSIG.
The Kobold KPH compact pressure switch comes standard with a 1/4 inch female NPT process connection and a DIN 43650A electrical connection. The switch has a fixed deadband, though the setpoint is easily adjustable, and a max switching rate of 100 per minute.
Documents
In Stock
Manufacturer Stock
This stock is typically available to ship in 2 - 3 working days.
| Part Number | Price | Available | |
|---|---|---|---|
|
KPH-8022 |
$344.00 | 12 in stock | |
|
KPH-8023 |
$318.00 | 11 in stock | |
|
KPH-8222 |
$310.00 | 11 in stock | |
|
KPH-8025 |
$483.00 | 10 in stock | |
|
KPH-8224 |
$310.00 | 9 in stock | |
|
KPH-8223 |
$389.00 | 7 in stock | |
|
KPH-8021 |
$324.00 | 4 in stock | |
|
KPH-8221 |
$281.00 | 4 in stock | |
|
KPH-8024 |
$319.00 | 2 in stock | |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
