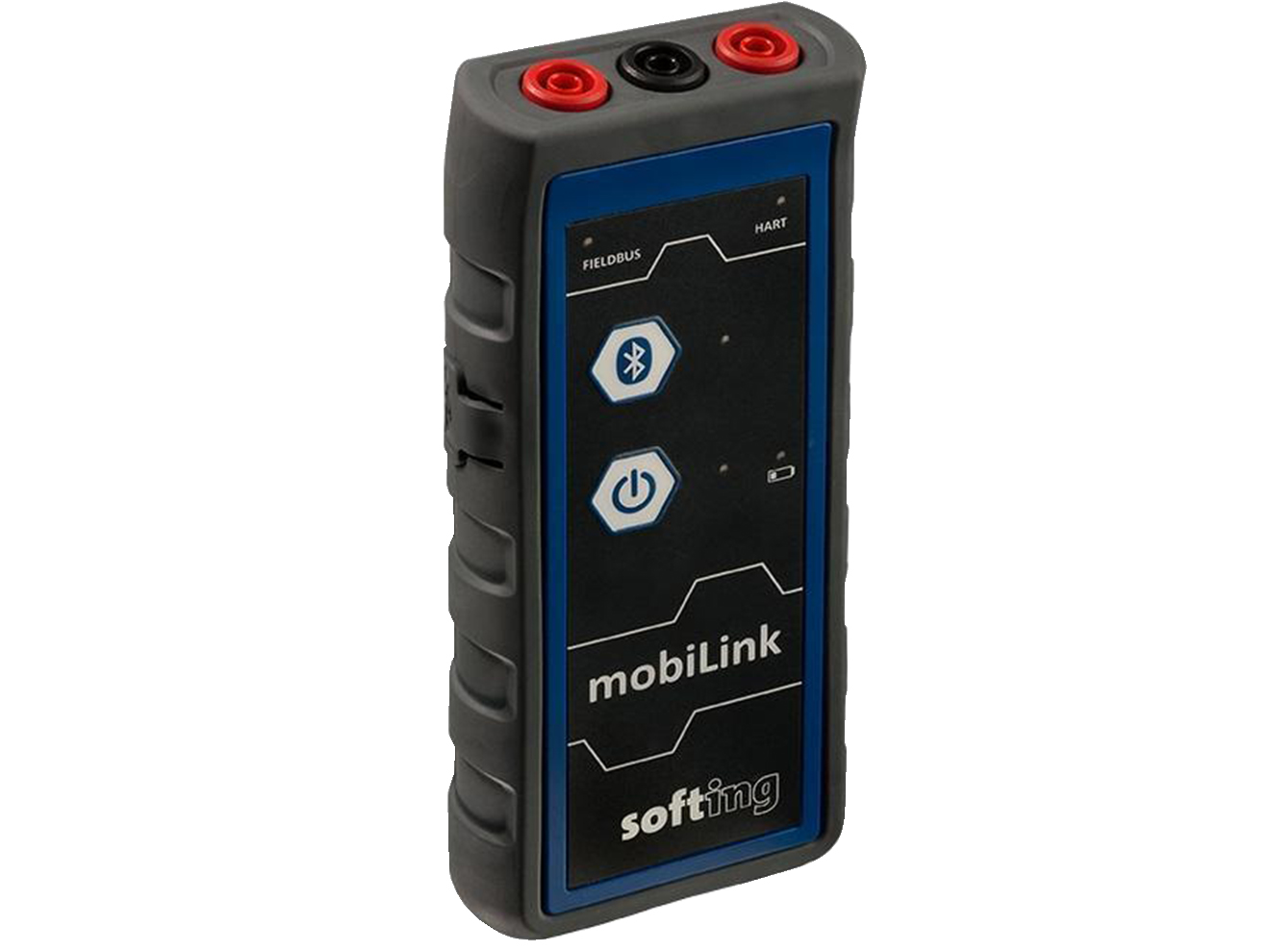

ProComSol MOBI-PA MobiLink Modem
A battery powered modem for Profibus PA and HART communication in hazardous areas, featuring Bluetooth connectivity, and USB interface for safe zones.
Overview
Features
- Compliant Profibus PA host
- USB interface (safe area only)
- Compliant HART master
- Suitable for hazardous areas, Zone 1
- Rugged enclosure to IP54 standard
- Bluetooth interface
- Battery powered (45 hr operation)
- Compatible with DevCom2000, DevComDroid, and DevCom.iOS for HART
- Profibus PA and HART DTMs included for FDT systems
- Supports HART 4–7 and wirelessHART via standard HCF_SPEC-54
- Rugged enclosure to IP54 standard
- Certified to EMC, ATEX, IECEx, RED, RoHS, and WEEE standards
Description
The ProComSol MK-1062 mobiLink Modem is a compact, battery-powered communication interface designed for use with both Profibus PA and HART protocols. Engineered for use in hazardous areas, it supports Bluetooth and Bluetooth LE wireless communication and includes a USB interface for operation in non-hazardous (safe) zones. Housed in a rugged IP54-rated enclosure, the MK-1062 enables configuration, monitoring, and diagnostics of field devices using DevCom software or other FDT-based systems.
With over 45 hours of continuous operation on three AA batteries, the MK-1062 is ideal for mobile, field-based applications. It includes Profibus PA and HART DTMs and is compatible with Windows-based FDT systems as well as DevCom2000, DevComDroid, and DevCom.iOS for HART connectivity. The device meets global hazardous area certifications (ATEX, IECEx) and operates reliably in harsh environments with wide temperature and humidity ranges.
