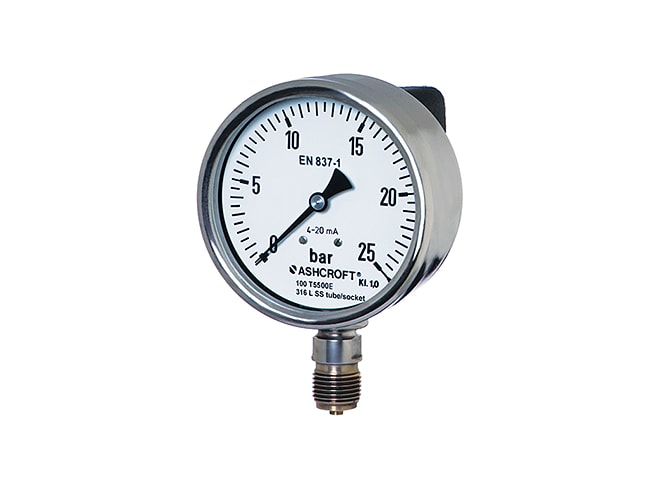

Ashcroft T5500E Process Gauge

Stainless steel analog gauge with integrated pressure transmitter for pressure ranges up to 15,000 psi with ±0.5% full scale accuracy.

Starting at $833.58

Effective August 14th, 2025, Ashcroft has added a 4% surcharge to this product. The surcharge will appear as a separate line item on the order.


View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 4-6 weeks
Product Manual Product Specs

Features

  • ±0.5% span accuracy
  • <= ±0.3% compound F.S. repeatability
  • 100mm (4in) dial size
  • 1/4 or 1/2 NPT process connection option
  • Vacuum, compound to 15,000 psi pressure range
  • IP65 protection rating

The Ashcroft T5500E process gauge with output combines a pressure gauge and pressure transmitter, reducing costs for multiple instruments. This model can be integrated into safety and data acquisition systems or hazardous applications, and is ideal when pressure measurement needs to be monitored or controlled. The PLUS! Performance option dampens vibration, shock and pulsation effects.

Ashcroft T5500E Process Gauge Applications

  • Refineries
  • Pulp and paper
  • Power plants
  • Pressure measurement
  • Monitoring and control
