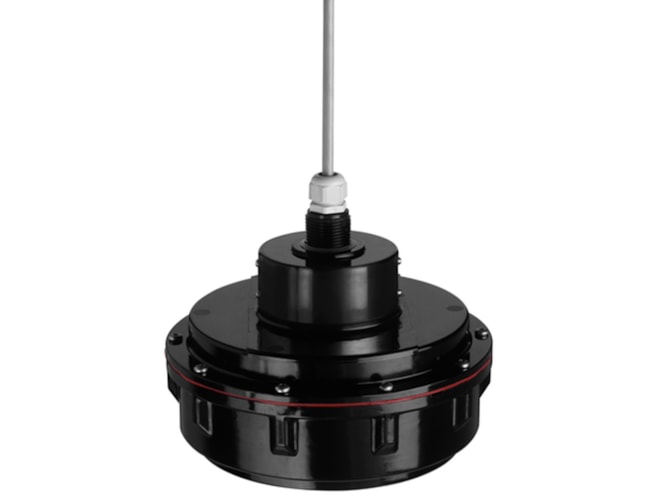

E+H Prosonic FDU95 Ultrasonic Level Sensor

non-contact and maintenance-free level measurement in solids up to 45m (148ft).

Starting at $2,324.95
Effective August 22nd, 2025, Endress+Hauser has added a 8.4% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews
Manufactured
Includes
Availability
Product Specs

Features

  • Threaded process connections
  • -40 to 176°F or 302°F (-40 to 95°C or 150°C) temp range
  • 10 to 22psi (0.7 to 1.5bar) pressure range
  • Maximum measuring range: solids: 148ft (45m)
  • Blocking distance: 0.6m (2ft)
  • Blocking distance: 0.7m / 80°C (2.3ft), 0.9m / 150°C (2.9ft)
  • International explosion protection certificates

The E+H Prosonic FDU95 Ultrasonic Level Sensor is for continuous, non-contact and maintenance-free level measurement of powdery to coarse bulk materials. The measurement is unaffected by dielectric constant, density or humidity and also unaffected by build-up due to the self-cleaning effect of sensors. Suited for explosion hazardous areas. Maximum measuring range in solids 45m (148ft).

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number Price Available
FDU95-R1N4A
Show Configuration
$2,526.82 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-2 weeks". Click here to select options
