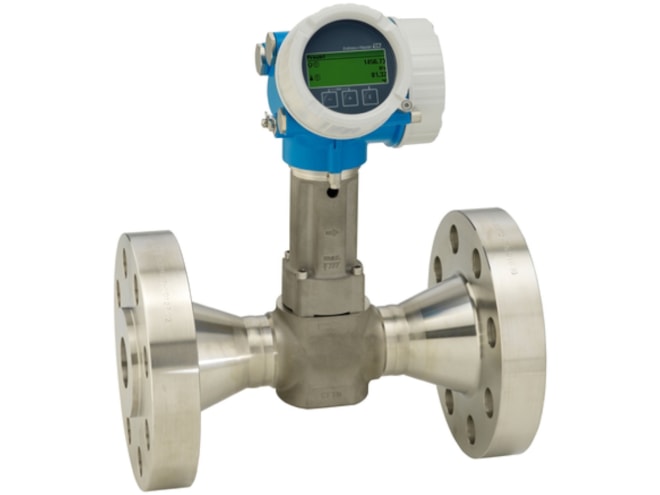

E+H Proline Prowirl O 200 Vortex Flow Meter

Integrated temperature and pressure measurement for steam and gases, high pressure applications.

Starting at $8,712.11
Effective August 22nd, 2025, Endress+Hauser has added a 8.4% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • High-pressure mating pipes
  • Saturated steam mass flow up to PN 250 (Class 1500)
  • Full compliance with NACE (MR0175/MR0103)
  • Flexible positioning of pressure cell
  • Plant safety: worldwide approvals (SIL, Haz. area)
  • Dual-compartment housing

The E+H Proline Prowirl O 200 Vortex Flow Meter is ideally suited for reliable process control in demanding gas and steam applications with high process pressure. Moreover, its design ensures maximum safety in main and ancillary processes. With genuine loop-powered technology, Prowirl O 200 enables cost-effective and seamless integration into existing infrastructures. It offers highest operational safety in hazardous areas. Heartbeat Technology ensures process safety at all times.

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number Size Approval Output / Input Sensor Version DSC-Sensor / Meas. Tube Process Connection Application Package Price Available
7O2C1H-C2BCJCDBDAAADSKA1DCLA
Show Full Configuration
4in, DN100
CSA C/US IS Cl.I,II,III Div.1 Gr.A-G
4-20mA HART, pulse/freq./switch output
Volume high temperature, Alloy 718; 316L -200...+400oC/-328...+750oF
Cl.900 RF Sch.80, flange ASME B16.5
Without
 $13,902.13 1 in stock
7O2C25-C2BCJCDBDAAADSKA1DCLA
Show Full Configuration
1in, DN25
CSA C/US IS Cl.I,II,III Div.1 Gr.A-G
4-20mA HART, pulse/freq./switch output
Volume high temperature, Alloy 718; 316L -200...+400oC/-328...+750oF
Cl.900 RF Sch.80, flange ASME B16.5
Without
 $10,244.34 1 in stock

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number Price Available
7O2C40-C3ACCADBDAAADSKA1JAJBLA Call for information 1 Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 8-10 weeks ". Click here to select options
