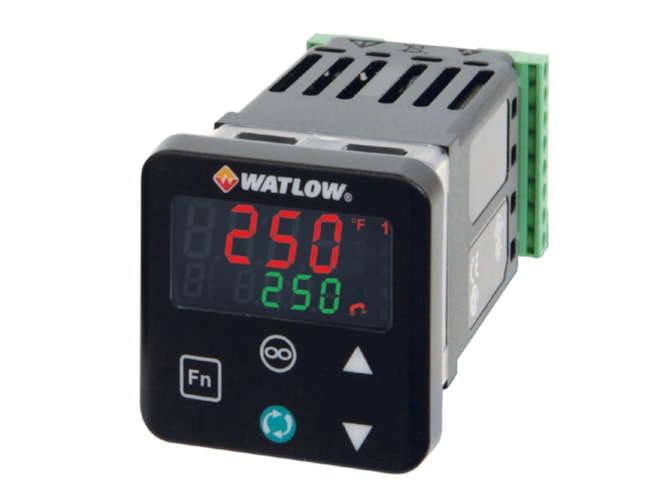

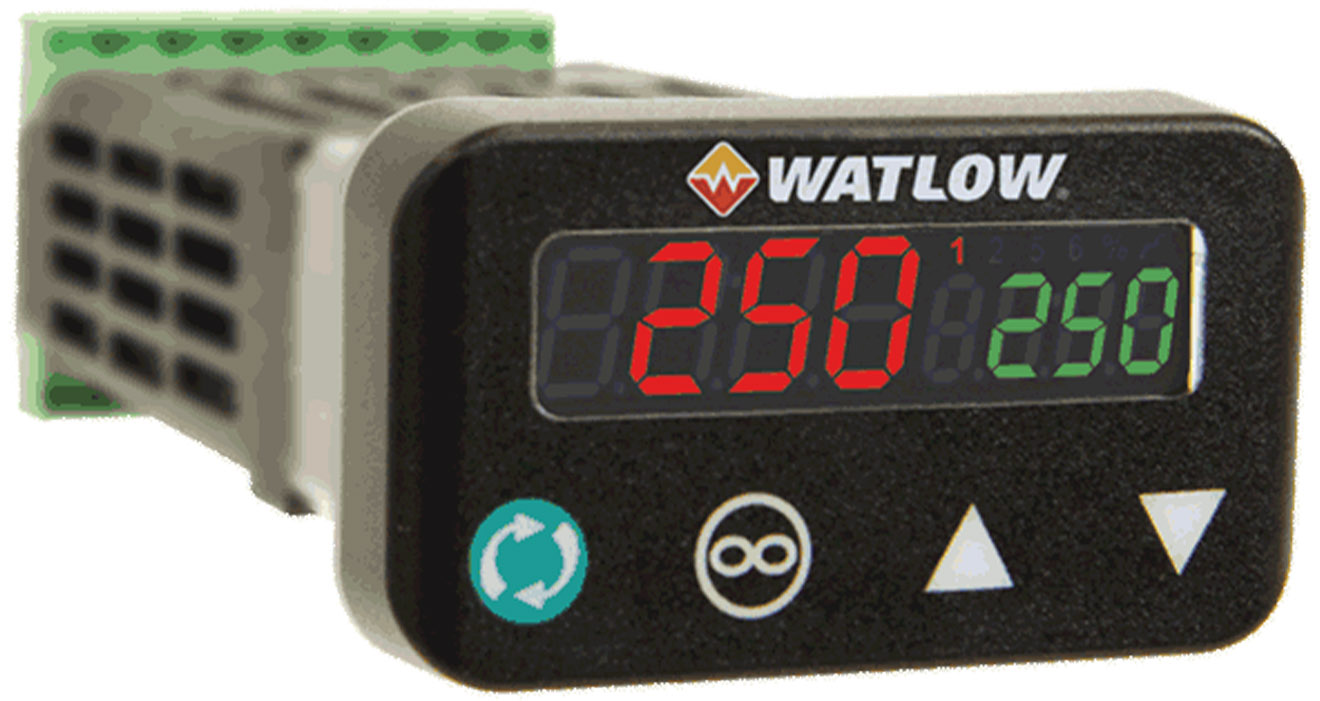

Watlow PM Legacy Temperature & Process Controller

Panel mount controller utilizing simple control and menu functionality without complex features.

Starting at $262.00

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs (2 Files)

Features

  • PID auto-tune
  • Standard bus communications
  • FM approved over & under limit with auxiliary outputs
  • Touch-safe package
  • EZ-LINK mobile application for iPhone and Android
  • NEMA 4X, IP66 and IP67
  • Three-year warranty
  • UL listed, CSA, CE, RoHS, W.E.E.E., FM, SEMI F47-0200, Class 1, Div. 2 rating

The Watlow PM LEGACY series panel mount controller is an industry leading PID controller that allows optimal performance utilizing simple control and menu functionality without complex features. It is ideally suited for basic applications and usage levels.

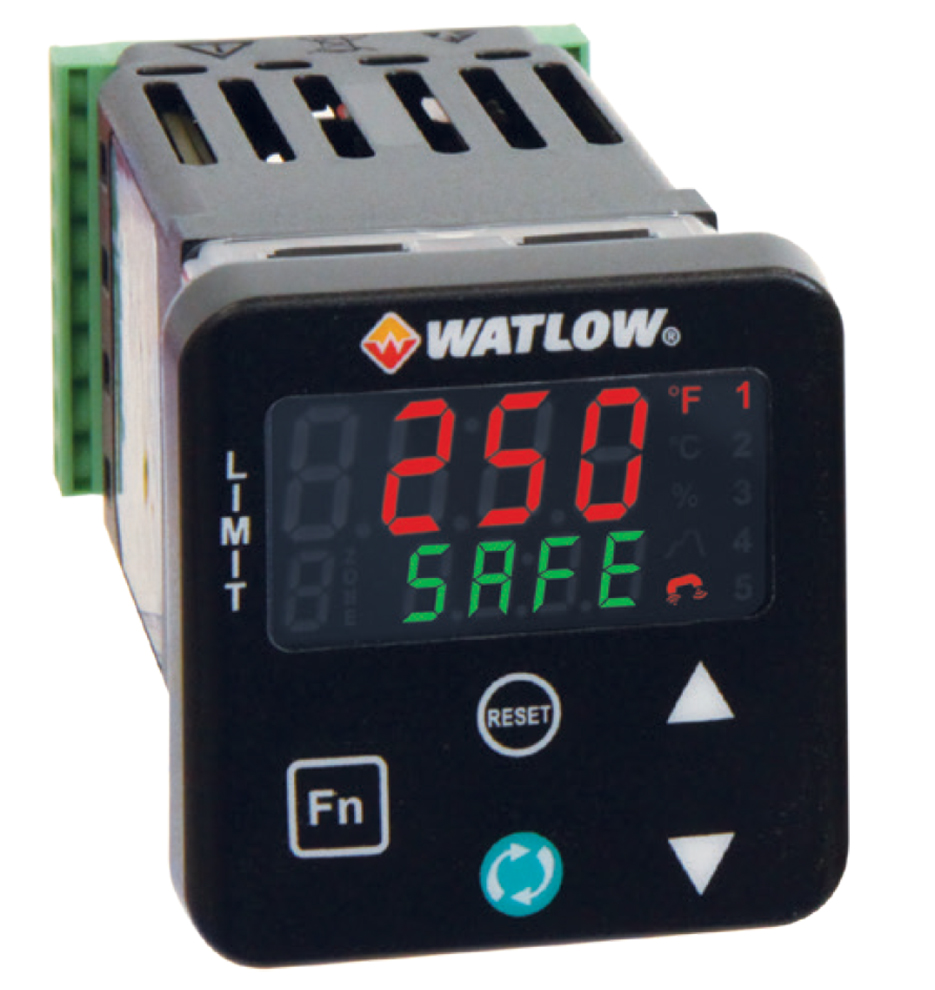

The LEGACY includes one universal input and an option for up to two outputs, and is available in 1/32 and 1/16 DIN panel mount packages. It can be ordered as a PID process controller or as a dedicated over and under-temperature limit controller.

Cables

RS-485 to USB Converter
RS-485 to USB Converter

Two-wire RS485 to USB converter.

$163.00

Accessories

Please consider these optional accessories.

Watlow Quencharc RC Suppressor
Watlow Quencharc RC Suppressor

Protects EZ-ZONE controller outputs from damage that can be caused by voltage spikes from inductive loads (250VAC max).

In Stock
$9.25

This product can be used in the following applications:

Part Number Package Size Primary Function Power Supply, Digital I/O Output 1 Output 2 Output 3 Output 4 Price Available
PM3C1CJ-BAAANWP
Show Full Configuration
1/32 DIN
PID controller with universal input
100 to 240VAC
Switched DC/open collector
Mechanical relay 5A, Form A
None
None
 $301.00 18 in stock
PM6C1CA-BAAAHWP
Show Full Configuration
1/16 DIN
PID controller with universal input
100 to 240VAC
Switched DC/open collector
None
NA, Limit only
NA, Limit only
 $289.00 14 in stock
PM6C1EA-BAAAHWP
Show Full Configuration
1/16 DIN
PID controller with universal input
100 to 240VAC
Mechanical relay 5A, Form C
None
NA, Limit only
NA, Limit only
 $328.00 12 in stock
PM6L1EJ-BAAAHWP
Show Full Configuration
1/16 DIN
Limit controller with universal input
100 to 240VAC
Mechanical relay 5A, Form C
Mechanical relay 5A, Form A
None
None
 $361.00 9 in stock
PM3C1EA-BAAANWP
Show Full Configuration
1/32 DIN
PID controller with universal input
100 to 240VAC
Mechanical relay 5A, Form C
None
None
None
 $301.00 8 in stock
PM6C1EJ-BAAAHWP
Show Full Configuration
1/16 DIN
PID controller with universal input
100 to 240VAC
Mechanical relay 5A, Form C
Mechanical relay 5A, Form A
NA, Limit only
NA, Limit only
 $361.00 8 in stock
PM3C1CA-BAAANWP
Show Full Configuration
1/32 DIN
PID controller with universal input
100 to 240VAC
Switched DC/open collector
None
None
None
 $262.00 5 in stock
PM6C1CJ-BAAAHWP
Show Full Configuration
1/16 DIN
PID controller with universal input
100 to 240VAC
Switched DC/open collector
Mechanical relay 5A, Form A
NA, Limit only
NA, Limit only
 $328.00 5 in stock
PM6L1AJ-BAAAHWP
Show Full Configuration
1/16 DIN
Limit controller with universal input
100 to 240VAC
None
Mechanical relay 5A, Form A
None
None
 $328.00 5 in stock
PM3L1AJ-BAAAGWP
Show Full Configuration
1/32 DIN
Limit controller with universal input
100 to 240VAC
None
Mechanical relay 5A, Form A
None
None
 $302.00 3 in stock
PM6L2EJ-BAAAGWP
Show Full Configuration
1/16 DIN
Limit controller with universal input
100 to 240VAC plus 2 digital I/O points
Mechanical relay 5A, Form C
Mechanical relay 5A, Form A
None
None
 $394.00 3 in stock
PM3C3CC-BAAANWP
Show Full Configuration
1/32 DIN
PID controller with universal input
20 to 28VAC or 12 to 40VDC
Switched DC/open collector
Switched DC/open collector
None
None
 $339.00 2 in stock
PM6C3CC-BAAAHWP
Show Full Configuration
1/16 DIN
PID controller with universal input
20 to 28VAC or 12 to 40VDC
Switched DC/open collector
Switched DC/open collector
NA, Limit only
NA, Limit only
 $366.00 1 in stock
PM6C3FA-BAAAHWP
Show Full Configuration
1/16 DIN
PID controller with universal input
20 to 28VAC or 12 to 40VDC
Universal process
None
NA, Limit only
NA, Limit only
 $384.00 1 in stock
PM6L1EJ-AAAAGWP
Show Full Configuration
1/16 DIN
Limit controller with universal input
100 to 240VAC
Mechanical relay 5A, Form C
Mechanical relay 5A, Form A
None
None
 $361.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 7-10 business days". Click here to select options
