Bourdon MAG Series Pressure Gauge

Liquid-filled industrial gauge measuring vacuum and compound pressure up to 15,000psi.

Starting at $118.57

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • Size:
    • 2.5in (63mm)
    • 4in (100mm)
  • Accuracy:
    • 2.5in: ± 2/1/2% of span
    • 4in: ± 1% of span
  • Forged one piece case and socket
  • Powder coated case
  • Gold plated or stainless steel cover ring (depending on size selected)
  • Aluminum black pointer
  • IP 66 (EN 60529) protection rating

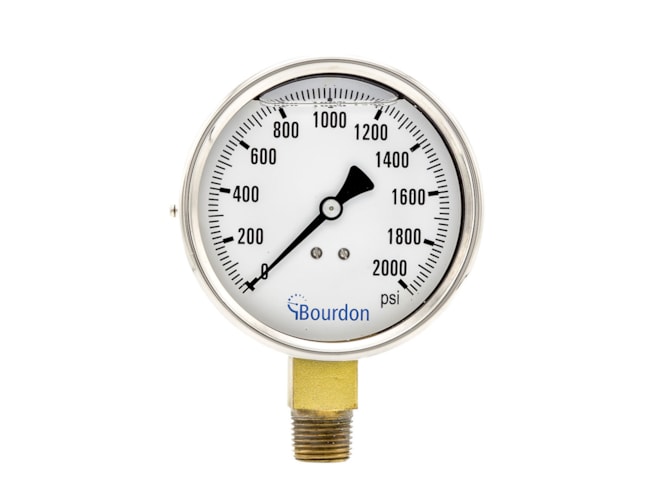

The Bourdon MAG Series pressure gauge is an analog, liquid-filled gauge measuring pressures up to 15,000psi. The liquid fill and restrictor come standard for vibration and pressure pulsation, with liquid fill options of low viscosity glycerin/water, high viscosity glycerin, or silicone oil.

The MAG Series features a one piece, forged brass case and socket, and has copper alloy process connection, bourdon tube, and restrictor. The 2.5in (63mm) gauge size has a gold plated ABS cover ring and a standard accuracy of ± 2/1/2% of span, while the 4in (100mm) size has a polished stainless steel cover ring and a standard accuracy of ± 1% of span. Available process connections include 1/4 or 1/2in NPT.

Applications

  • Hydraulic pump systems
  • Compressors
  • Oil tank batteries
  • Oil field pumpjacks
  • Fire trucks
  • Mobile hydraulics
Bourdon D042 / D043 / D044 Diaphragm Seal
Bourdon D042 / D043 / D044 Diaphragm Seal

Welded diaphragm seal with screwed process connection for pressure ranges up to 6,000psi.

Select options for pricing
PIC Gauges Needle Valve
PIC Gauges Needle Valve

Instrumentation grade needle valves designed for heavy duty process and industrial applications.

Select options for pricing

Manufacturer Stock

Part Number Nominal Size Mounting Type Process Connection Liquid Filling Pressure Range Price Available
MAG3-D52.H27
Show Full Configuration
2.5in (63mm)
Bottom connection
1/4in NPT
High viscosity glycerin, 99.5%
0 to 600psi
 $100.90 3852 in stock
MAG3-D52.H22
Show Full Configuration
2.5in (63mm)
Bottom connection
1/4in NPT
High viscosity glycerin, 99.5%
0 to 160psi
 $100.90 3362 in stock
MAG3-D52.H21
Show Full Configuration
2.5in (63mm)
Bottom connection
1/4in NPT
High viscosity glycerin, 99.5%
0 to 100psi
 $100.90 1723 in stock
MAG3-D52.H31
Show Full Configuration
2.5in (63mm)
Bottom connection
1/4in NPT
High viscosity glycerin, 99.5%
0 to 1,500psi
 $117.57 1437 in stock
MAG3-D52.H30
Show Full Configuration
2.5in (63mm)
Bottom connection
1/4in NPT
High viscosity glycerin, 99.5%
0 to 1,000psi
 $117.57 993 in stock
MAG3-D52.H25
Show Full Configuration
2.5in (63mm)
Bottom connection
1/4in NPT
High viscosity glycerin, 99.5%
0 to 300psi
 $100.90 871 in stock
MAG3-D52.H19
Show Full Configuration
2.5in (63mm)
Bottom connection
1/4in NPT
High viscosity glycerin, 99.5%
0 to 60psi
 $100.90 543 in stock
MAG5-D62.H25
Show Full Configuration
4in (100mm)
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
0 to 300psi
 $232.26 516 in stock
MAG3-D52.H23
Show Full Configuration
2.5in (63mm)
Bottom connection
1/4in NPT
High viscosity glycerin, 99.5%
0 to 200psi
 $100.90 501 in stock
MAG5-D62.H26
Show Full Configuration
4in (100mm)
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
0 to 400psi
 $232.26 348 in stock
MAG5-D62.H23
Show Full Configuration
4in (100mm)
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
0 to 200psi
 $232.26 324 in stock
MAG3-D52.H17
Show Full Configuration
2.5in (63mm)
Bottom connection
1/4in NPT
High viscosity glycerin, 99.5%
0 to 30psi
 $100.90 319 in stock
MAG3-D52.H26
Show Full Configuration
2.5in (63mm)
Bottom connection
1/4in NPT
High viscosity glycerin, 99.5%
0 to 400psi
 $100.90 282 in stock
MAG3-D52.H34
Show Full Configuration
2.5in (63mm)
Bottom connection
1/4in NPT
High viscosity glycerin, 99.5%
0 to 3,000psi
 $117.57 282 in stock
MAG5-D62.H22
Show Full Configuration
4in (100mm)
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
0 to 160psi
 $232.26 282 in stock
MAG5-D62.H19
Show Full Configuration
4in (100mm)
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
0 to 60psi
 $232.26 278 in stock
MAG3-D52.H75
Show Full Configuration
2.5in (63mm)
Bottom connection
1/4in NPT
High viscosity glycerin, 99.5%
-30inHg to 30psi
 $100.90 257 in stock
MAG5-D62.H30
Show Full Configuration
4in (100mm)
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
0 to 1,000psi
 $258.73 232 in stock
MAG5-D62.H34
Show Full Configuration
4in (100mm)
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
0 to 3,000psi
 $258.73 209 in stock
MAG5-D62.H17
Show Full Configuration
4in (100mm)
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
0 to 30psi
 $232.26 168 in stock
MAG3-D52.H15
Show Full Configuration
2.5in (63mm)
Bottom connection
1/4in NPT
High viscosity glycerin, 99.5%
0 to 15psi
 $100.90 143 in stock
MAG3-D52.H40
Show Full Configuration
2.5in (63mm)
Bottom connection
1/4in NPT
High viscosity glycerin, 99.5%
0 to 10,000psi
 $124.63 89 in stock
MAG5-D62.H31
Show Full Configuration
4in (100mm)
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
0 to 1,500psi
 $258.73 84 in stock
MAG3-D52.H59
Show Full Configuration
2.5in (63mm)
Bottom connection
1/4in NPT
High viscosity glycerin, 99.5%
-30inHg to 0psi
 $100.90 81 in stock
MAG5-D60.H40
Show Full Configuration
4in (100mm)
Bottom connection
1/2in NPT
Dry
0 to 10,000psi
 $297.93 76 in stock
MAG5-D62.H27
Show Full Configuration
4in (100mm)
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
0 to 600psi
 $232.26 69 in stock
MAG3-D52.H81
Show Full Configuration
2.5in (63mm)
Bottom connection
1/4in NPT
High viscosity glycerin, 99.5%
-30inHg to 220psi
 $100.90 45 in stock
MAG3-D50.H2C
Show Full Configuration
2.5in (63mm)
Bottom connection
1/4in NPT
Dry
-30inHg to 60psi
 $94.40 42 in stock
MAG5-D62.H75
Show Full Configuration
4in (100mm)
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
-30inHg to 30psi
 $232.26 33 in stock
MAG5-D62.H21
Show Full Configuration
4in (100mm)
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
0 to 100psi
 $232.26 24 in stock
MAG3-D52.H2C
Show Full Configuration
2.5in (63mm)
Bottom connection
1/4in NPT
High viscosity glycerin, 99.5%
-30inHg to 60psi
 $100.90 23 in stock
MAG5-D62.H40
Show Full Configuration
4in (100mm)
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
0 to 10,000psi
 $305.03 23 in stock
MAG3-D50.H17
Show Full Configuration
2.5in (63mm)
Bottom connection
1/4in NPT
Dry
0 to 30psi
 $94.40 18 in stock
MAG5-D60.H75
Show Full Configuration
4in (100mm)
Bottom connection
1/2in NPT
Dry
-30inHg to 30psi
 $225.16 18 in stock
MAG3-D52.H78
Show Full Configuration
2.5in (63mm)
Bottom connection
1/4in NPT
High viscosity glycerin, 99.5%
-30inHg to 100psi
 $100.90 16 in stock
MAG3-D50.H75
Show Full Configuration
2.5in (63mm)
Bottom connection
1/4in NPT
Dry
-30inHg to 30psi
 $94.40 12 in stock
MAG3-D52.H82
Show Full Configuration
2.5in (63mm)
Bottom connection
1/4in NPT
High viscosity glycerin, 99.5%
-30inHg to 300psi
 $100.90 12 in stock
MAG5-D62.H15
Show Full Configuration
4in (100mm)
Bottom connection
1/2in NPT
High viscosity glycerin, 99.5%
0 to 15psi
 $232.26 12 in stock
MAG3-D52.H79
Show Full Configuration
2.5in (63mm)
Bottom connection
1/4in NPT
High viscosity glycerin, 99.5%
-30inHg to 150psi
 $100.90 11 in stock
MAG3-D50.H59
Show Full Configuration
2.5in (63mm)
Bottom connection
1/4in NPT
Dry
-30inHg to 0psi
 $94.40 10 in stock
MAG3-F52.H22
Show Full Configuration
2.5in (63mm)
Back connection
1/4in NPT
High viscosity glycerin, 99.5%
0 to 160psi
 $115.27 9 in stock
MAG3-D50.H26
Show Full Configuration
2.5in (63mm)
Bottom connection
1/4in NPT
Dry
0 to 400psi
 $94.40 4 in stock
MAG3-D52.H38
Show Full Configuration
2.5in (63mm)
Bottom connection
1/4in NPT
High viscosity glycerin, 99.5%
0 to 6,000psi
 $117.57 3 in stock
MAG5-D60.H31
Show Full Configuration
4in (100mm)
Bottom connection
1/2in NPT
Dry
0 to 1,500psi
 $251.63 3 in stock
MAG5-D60.H34
Show Full Configuration
4in (100mm)
Bottom connection
1/2in NPT
Dry
0 to 3,000psi
 $251.63 3 in stock
MAG5-D60.H17
Show Full Configuration
4in (100mm)
Bottom connection
1/2in NPT
Dry
0 to 30psi
 $225.16 2 in stock
MAG5-D60.H25
Show Full Configuration
4in (100mm)
Bottom connection
1/2in NPT
Dry
0 to 300psi
 $225.16 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Click here to select options
