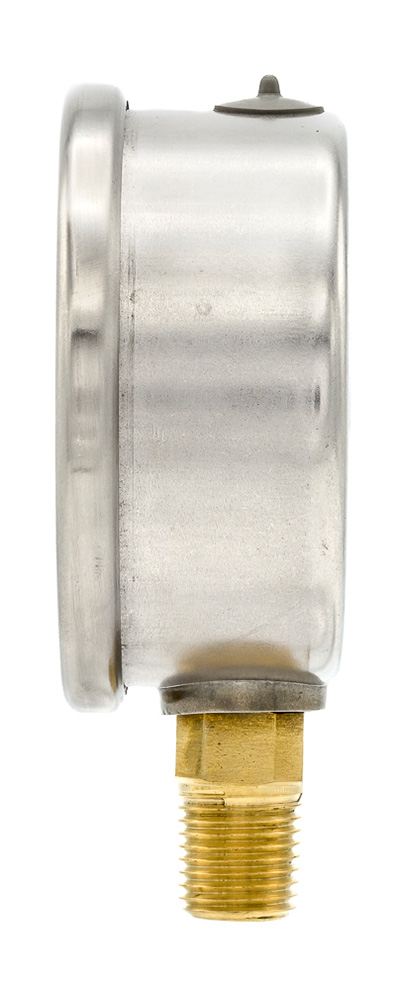

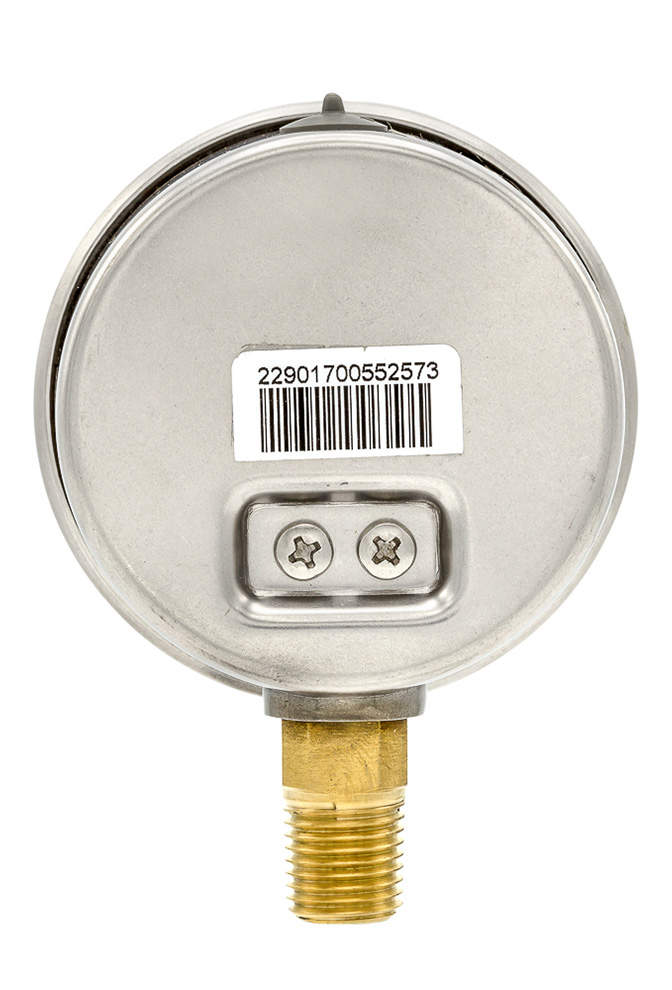

Bourdon MAX Series Pressure Gauge
Liquid-filled industrial gauge measuring vacuum and compound pressure up to 15,000psi.
Starting at
$46.63
Manufactured
- By Bourdon
Includes
Availability
-
Manufacturer has some models in stock. View available part numbers.
Overview
Features
- Size:
- 2.5in (63mm)
- 4in (100mm)
- Accuracy:
- 2.5in: ± 1.6% of span
- 4in: ± 1% of span
- Stainless steel case
- Copper alloy socket
- Aluminum black pointer
- IP 65 (EN 60529) protection rating
Description
The Bourdon MAX Series pressure gauge measures pressures up to 10,000psi and is available in 2.5 or 4in sizes. The MAX Series features a stainless steel case, copper alloy socket, and aluminum black pointer. Gauges with pressure ranges less than 6,000psi have copper alloy bourdon tubes, while ranges above 6,000psi have a stainless steel bourdon tube.
The MAX Series gauge comes liquid-filled, with liquid fill options of high viscosity glycerin, low viscosity glycerin/water, or silicone oil. The 2.5in (63mm) gauge size has a standard accuracy of ± 1.6% of span and the 4in (100mm) size has a standard accuracy of ± 1% of span. Available connections include 1/4 and 1/2in NPT.
Applications
- Hydraulic pump systems
- Compressors
- Oil tank batteries
- Pneumatics
- Pumps
- Diesel engines
Documents
Accessories
In Stock
Manufacturer Stock
| Part Number | Price | Available | |
|---|---|---|---|
|
MAX3-D52.H22 |
$39.50 | 960 in stock | |
|
MAX5-F53.H17 |
$121.36 | 802 in stock | |
|
MAX3-D52.H19 |
$39.50 | 698 in stock | |
|
MAX3-D52.H31 |
$50.30 | 492 in stock | |
|
MAX3-D52.H34 |
$46.63 | 456 in stock | |
|
MAX5-D62.H22 |
$118.80 | 420 in stock | |
|
MAX3-D52.H23 |
$39.50 | 385 in stock | |
|
MAX3-D52.H17 |
$39.50 | 366 in stock | |
|
MAX5-D62.H23 |
$118.80 | 350 in stock | |
|
MAX3-D52.H25 |
$39.50 | 324 in stock | |
|
MAX3-D52.H30 |
$46.63 | 310 in stock | |
|
MAX5-D62.H27 |
$118.80 | 306 in stock | |
|
MAX3-F52.H31 |
$50.33 | 300 in stock | |
|
MAX5-D62.H25 |
$118.80 | 277 in stock | |
|
MAX5-D62.H31 |
$120.96 | 244 in stock | |
|
MAX3-D52.H38 |
$46.63 | 232 in stock | |
|
MAX3-D52.H21 |
$39.50 | 206 in stock | |
|
MAX3-D51.H73 |
$46.63 | 164 in stock | |
|
MAX3-F52.H25 |
$39.53 | 160 in stock | |
|
MAX3-D51.H19 |
$39.50 | 133 in stock | |
|
MAX5-D62.H17 |
$118.80 | 114 in stock | |
|
MAX5-D62.H34 |
$118.80 | 112 in stock | |
|
MAX3-F52.H21 |
$39.53 | 108 in stock | |
|
MAX5-D62.H26 |
$118.80 | 107 in stock | |
|
MAX3-F51.H34 |
$46.66 | 105 in stock | |
|
MAX3-D52.H40 |
$46.63 | 96 in stock | |
|
MAX3-F51.H23 |
$39.53 | 93 in stock | |
|
MAX3-D52.H26 |
$39.50 | 92 in stock | |
|
MAX5-D62.H21 |
$118.80 | 84 in stock | |
|
MAX5-D62.H19 |
$118.80 | 82 in stock | |
|
MAX5-D62.H30 |
$118.80 | 80 in stock | |
|
MAX5-D62.H40 |
$118.80 | 80 in stock | |
|
MAX3-D52.H75 |
$46.63 | 70 in stock | |
|
MAX5-D60.H23 |
$109.13 | 65 in stock | |
|
MAX3-F52.H22 |
$39.53 | 64 in stock | |
|
MAX3-D50.H22 |
$39.50 | 60 in stock | |
|
MAX3-D50.H40 |
$46.63 | 60 in stock | |
|
MAX5-D50.H40 |
$109.13 | 60 in stock | |
|
MAX5-D62.H38 |
$118.80 | 58 in stock | |
|
MAX3-D52.H15 |
$39.50 | 57 in stock | |
|
MAX5-D52.H30 |
$118.80 | 48 in stock | |
|
MAX3-D50.H15 |
$39.50 | 46 in stock | |
|
MAX5-D52.H22 |
$118.80 | 46 in stock | |
|
MAX5-D62.H75 |
$119.70 | 45 in stock | |
|
MAX5-D52.H40 |
$118.80 | 44 in stock | |
|
MAX5-D60.H21 |
$109.13 | 44 in stock | |
|
MAX3-F52.H15 |
$39.53 | 40 in stock | |
|
MAX3-D52.H27 |
$39.50 | 36 in stock | |
|
MAX3-D52.H73 |
$46.63 | 36 in stock | |
|
MAX5-D60.H19 |
$109.13 | 35 in stock | |
|
MAX3-D52.H59 |
$46.63 | 34 in stock | |
|
MAX5-D52.H19 |
$118.80 | 34 in stock | |
|
MAX3-D51.H17 |
$39.50 | 32 in stock | |
|
MAX5-D52.H34 |
$118.80 | 31 in stock | |
|
MAX5-D52.H21 |
$118.80 | 28 in stock | |
|
MAX3-F50.H25 |
$39.53 | 24 in stock | |
|
MAX5-D60.H15 |
$105.53 | 23 in stock | |
|
MAX3-D50.H75 |
$46.63 | 20 in stock | |
|
MAX5-D60.H34 |
$109.13 | 20 in stock | |
|
MAX5-D52.H27 |
$118.80 | 15 in stock | |
|
MAX5-D52.H38 |
$118.80 | 13 in stock | |
|
MAX3-D50.H30 |
$46.63 | 12 in stock | |
|
MAX5-D52.H17 |
$118.80 | 12 in stock | |
|
MAX3-F50.H30 |
$46.66 | 11 in stock | |
|
MAX3-F52.H27 |
$39.53 | 11 in stock | |
|
MAX5-D62.H15 |
$115.20 | 11 in stock | |
|
MAX3-F50.H34 |
$46.66 | 10 in stock | |
|
MAX5-D52.H25 |
$118.80 | 10 in stock | |
|
MAX5-D60.H27 |
$109.13 | 10 in stock | |
|
MAX3-F50.H23 |
$39.53 | 9 in stock | |
|
MAX5-F52.H75 |
$125.93 | 9 in stock | |
|
MAX5-F52.H21 |
$125.03 | 8 in stock | |
|
MAX3-D50.H17 |
$39.50 | 6 in stock | |
|
MAX5-D60.H17 |
$109.13 | 6 in stock | |
|
MAX3-D50.H19 |
$39.50 | 5 in stock | |
|
MAX3-F50.H22 |
$39.53 | 5 in stock | |
|
MAX3-F51.H30 |
$46.66 | 5 in stock | |
|
MAX5-D52.H23 |
$118.80 | 5 in stock | |
|
MAX5-D52.H31 |
$120.96 | 5 in stock | |
|
MAX5-F50.H17 |
$115.36 | 5 in stock | |
|
MAX5-F50.H22 |
$115.36 | 5 in stock | |
|
MAX5-F52.H40 |
$125.03 | 5 in stock | |
|
MAX5-F62.H23 |
$125.03 | 5 in stock | |
|
MAX5-F62.H34 |
$125.03 | 5 in stock | |
|
MAX3-D50.H21 |
$39.50 | 4 in stock | |
|
MAX3-D50.H31 |
$50.30 | 4 in stock | |
|
MAX3-D51.H21 |
$39.50 | 3 in stock | |
|
MAX5-F52.H19 |
$125.03 | 3 in stock | |
|
MAX5-D60.H22 |
$109.13 | 2 in stock | |
|
MAX5-F52.H15 |
$121.43 | 2 in stock | |
|
MAX3-F50.H15 |
$39.53 | 1 in stock | |
|
MAX3-F50.H40 |
$46.66 | 1 in stock | |
|
MAX5-D50.H25 |
$109.13 | 1 in stock | |
|
MAX5-D60.H31 |
$111.29 | 1 in stock | |
|
MAX5-D61.H38 |
$109.13 | 1 in stock | |
