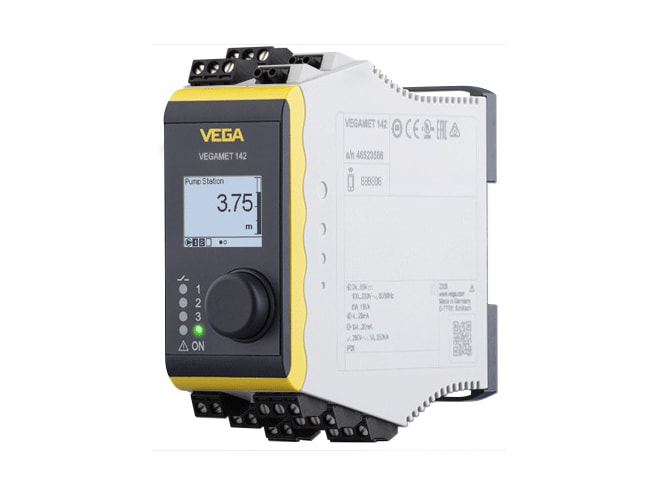

VEGA VEGAMET 142 Compact Controller
Compact controller and display instrument for two continuously measuring analog level sensors.
Overview
Features
- Two 4 to 20mA sensor inputs
- Type of input (selectable):
- Active input sensor supply through VEGAMET 142
- Passive input sensor has own voltage supply
- Two 0/4 to 20mA, 20 to 0/4mA current outputs
- Relay output:
- 3 operating relays, one can be configured as fail safe relay
- Switching voltage: max 250 V AC/60 V DC
- Switching current: max 1 A AC (cos phi > 0.9), 1 A DC
- ATEX / Europe, IEC / worldwide, c-UL-us, UKEX approvals
- IP20 (IEC 60529) protection
- Bluetooth 5.0
- Simple setup and diagnosis of measuring points via smartphone
- Control of measuring point by graphic display, even in the dark
Description

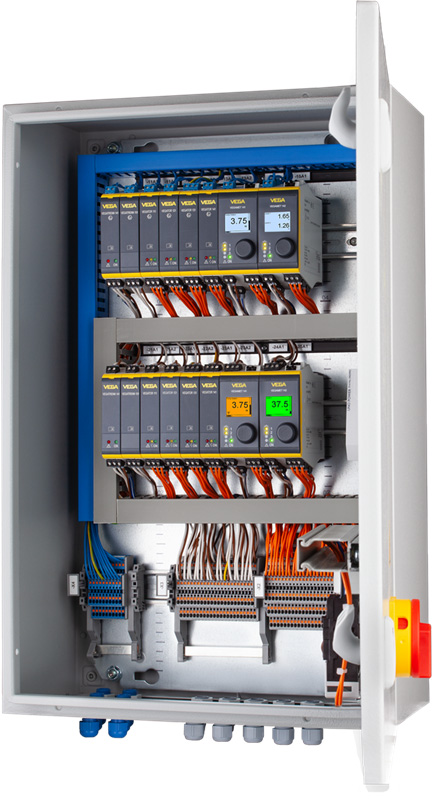

The VEGA VEGAMET 142 compact controller is ideal for mounting on carrier rails in switching cabinets because of its compact design. The controller feeds the connected 4 to 20mA sensors, and processes the measured values and displays them. The VEGAMET 142 also integrates a graphic display and a turn/push button for quick on-site control of the measuring point.
The VEGAMET 142 enables simple implementation of pump controls; flow measurements on open channels, weirs, and totalizers; and differential, sum, and average value calculations. With the VEGAMET 142, limit values can be reliably monitored and relays can be switched, for example, for an overfill protection according to WHG. The VEGAMET 142 is suitable for many industrial branches as well as for plant manufacturers.
