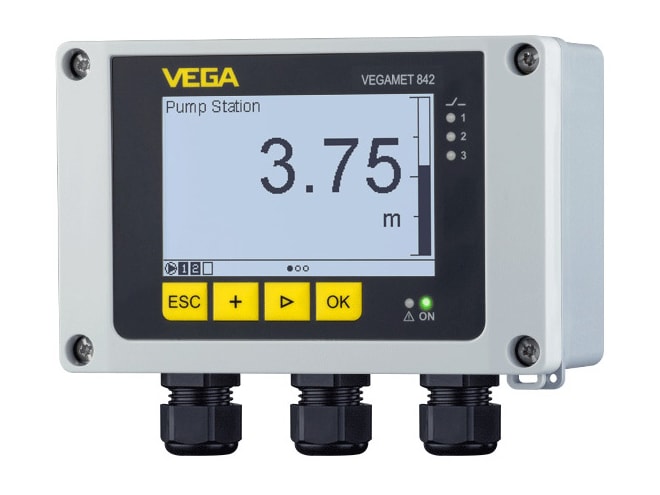

VEGA VEGAMET 842 Controller

Robust controller and display instrument in a field housing for continuously measuring analog level sensors.

Starting at $1,091.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 2-3 weeks
Product Manual Product Specs

Features

  • Two 4 to 20mA sensor inputs
  • Type of input (selectable):
    • Active input sensor supply through VEGAMET 842
    • Passive input sensor has own voltage supply
  • Two 0/4 to 20mA, 20 to 0/4mA current outputs
  • Relay output:
    • 3 operating relays, one can be configured as fail safe relay
    • Switching voltage: max 250 V AC/60 V DC
    • Switching current: max 1 A AC (cos phi > 0.9), 1 A DC
  • ATEX / Europe, c-UL-us, UKEX approvals
  • IP66/IP67, Type 4X protection rating
  • Bluetooth 5.0
  • Simple and reliable commissioning and diagnosis of the measuring points via smartphone
  • Easy-to-read display from a distance, even in sunlight and darkness

The VEGA VEGAMET 842 controller feeds the connected 4 to 20mA sensors, processes the measured values, and displays them. A large display for data visualization is integrated in the housing designed for rough field conditions.

The VEGAMET 842 enables a simple conversion of pump controls, flow measurements on open channels, and weirs and totalizers. The VEGAMET 842 allows limit values to be reliably monitored and relays to be switched, for example, for an overfill protection according to WHG.
