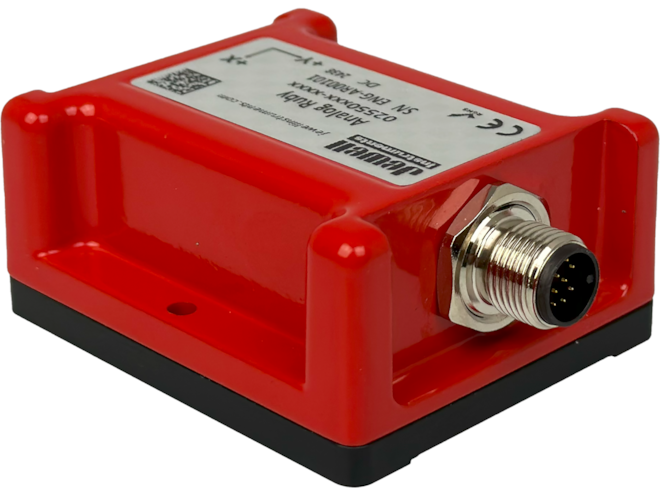

Jewell Instruments JMHA-100/200/300 Ruby MEMS Accelerometer

High-performance inertial sensor with enhanced resolution, faster frequency response, wider bandwidth, and IP67-rated design.

Starting at $650.00

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Specs

Features

  • Measurement ranges: ±0.5g to ±10g
  • Output signal options: ±5V, 4-20mA, or 0-5V
  • Resolution: From 0.08 to 0.02 mg
  • Bandwidth: 1000 Hz
  • Operating temperature range: -40° to 185°F
  • Sealing: IP67
  • Termination options: M12 and DB9 connectors
  • RoHS compliant

The Jewell Instruments JMHA-100/200/300 Ruby MEMS Accelerometers provide enhanced resolution, faster frequency response, and wider bandwidth, making them ideal for demanding applications. Available in single, dual, and triaxial configurations, the JMHA-100/200/300 is housed in a rugged IP67-rated enclosure, ensuring durability in harsh environments while maintaining seamless compatibility with existing MEMS sensor mounting configurations. Available in measurement ranges from ±0.5g to ±10g, the JMHA-100/200/300 has a resolution from 0.08 to 0.02 mg. The high bandwidth of 1000 Hz allows for precise motion tracking and vibration analysis. With multiple output signal options, including ±5V, 4-20mA, and 0-5V, they offer flexible integration into various systems. The operating temperature range of -40° to 185°F ensures consistent performance in extreme conditions, making these accelerometers suitable for diverse industrial and scientific applications.

Jewell Instruments JMHA-100/200/300 Ruby MEMS Accelerometer:

  • Aerospace
  • Military
  • Robotics
  • Academic Research
  • Wind Turbine Controls
  • Track Monitoring and Testing
  • Wind Power Monitoring
  • Vibration monitoring
  • Automated Control Systems
  • Vehicle Testing
