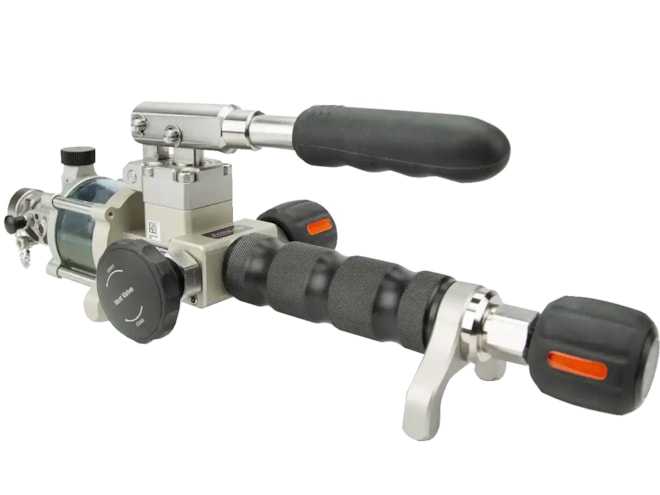

Additel ADT997 Handheld Hydraulic Pressure Pump
Provides up to 10,000 psi (700 bar) with a dual-stage piston for efficiency and reduced effort. Features multi-position operation and rapid stabilization.

Overview
Features
- Dual-stage piston: Higher pressure with less effort
- Generated Pressure Range: up to 10,000 psi (700 bar)
- Adjustment Resolution: 100 Pa (1 mbar)
- Maximum load volume: 100 ml
- Maximum volume of fine adjustment: 1.5 ml
- Port filters:
- Standard port: 150μm quick removal filter
- Pump air intake port: 100μm quick removal filter
- Pressure outlet: 150μm quick release filter
- Material:
- Ram/adapters: Stainless steel
- Body: Stainless steel, aluminum, UPVC
- Seals: Buna-N, PTFE, Copper Alloy
- Multi-position Versatility
- Warranty: 1 year
What's in the Box
- Mineral oil, 1 bottle (250 ml)
- O-ring: 20 pcs
- Flexible hose (Maximum pressure:720 bar)
- ADT100-X-M18M (one female quick connector for DUT) *
- Carrying case (997-X-SET models only) *
- *X - designated by base model ordered
Description
The Additel 997 Handheld Hydraulic Pressure Pump is a compact, portable solution designed to generate pressures up to 10,000 psi (700 bar). Perfect for various calibration and process control applications, it features a dual-stage pre-pressure piston that allows for high pressure with minimal effort. This energy-efficient design ensures stable and quick pressure stabilization, enhancing productivity during on-site operations. Its lever pressurization system provides rapid stabilization and precise adjustments, while the fine adjustment screw allows for fine-tuned settings with a high degree of accuracy. The pump's ergonomic design with multi-position versatility ensures that it can easily be adjusted to horizontal or vertical orientations, making it adaptable for different work environments.
Weighing only 4.19 lb (1.9 kg), the ADT997 is portable and easy to handle, yet durable enough to withstand demanding field conditions. Its low-maintenance design is built for longevity, making it a reliable tool for professionals seeking efficient, high-quality hydraulic pressure calibration. The pump is an ideal replacement for traditional handheld pressure pumps, offering modern features that enhance both performance and user experience.
