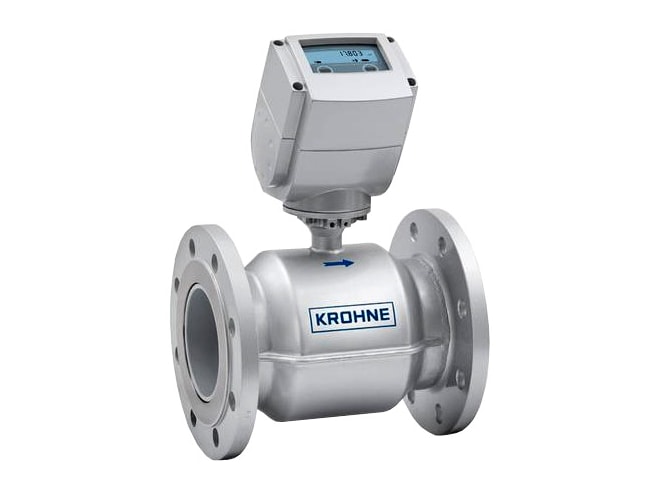

KROHNE WATERFLUX 3070 Electromagnetic Flow Meter
Designed to work with the battery powered IFC 070 signal converter, rectangular sensor construction provides good low flow performance and a large turndown ratio.
Overview
Features
- High accuracy at peak flows and at low flows
- Standard in-house wet calibration
- Bi-directional flow measurements
- Reference electrode, no grounding rings needed
- Suitable for subsoil installation and constant flooding (IP68)
- Rilsan® polymer coating
- Long term reliability and maintenance free
- No moving parts, no wear and no obstruction in the flow
- Drinking water approvals ACS, DVGW, NSF, TZW & WRAS
- Compliant with requirements for custody transfer
- MID MI-001, IS4064, EN 14154
For models designed to work with the IFC 050, IFC 100, or IFC 300 please visit the KROHNE WATERFLUX 3000 Electromagnetic Flow Meter page.
Description
The KROHNE WATERFLUX 3070 Electromagnetic Flow Meter strength lies in its unique construction with a rectangular and reduced cross section and its efficient coil construction. The coils provide a stronger and more homogeneous magnetic field, leading to an improved signal to noise ratio. The measurement is therefore independent of the flow profile and measurements are very stable. This results in a very good low flow performance.
Because of the unique WATERFLUX 3070 flow sensor design, whereby the mean flow velocity and flow profile are optimized within the rectangular and reduced cross section, the additional uncertainty for upstream disturbances is drastically reduced. The water meter can be installed directly behind an elbow or reducer in the pipe without straight inlet or outlet lengths. A substantial reduction of inlet and outlet sections means smaller measurement pits.
The Rilsan coating of the flow sensor is chemically resistant, durable and maintenance-free, flexible and tough, smooth and pore-free and free of solvents. The coating is widely used in the water industry and has received a wide range of drinking water certifications.
Though the WATERFLUX 3070 has been specially designed to work with the IFC 070 signal converter which is a battery-powered unit ideal for remote installations. All signal converters must be purchased separately.
