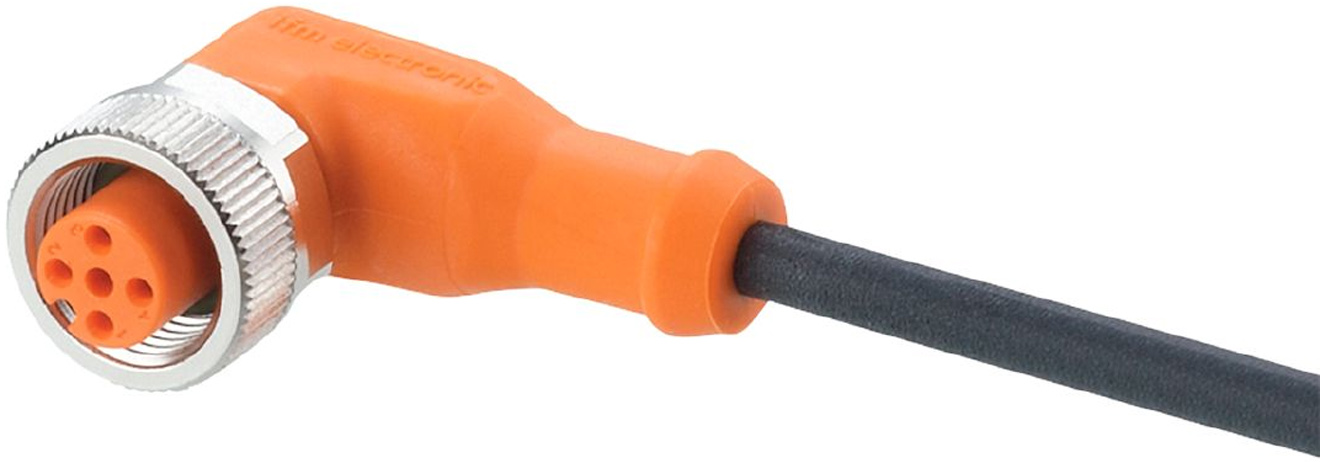

ifm efector EVC Series Female Cordset

0.7 to 90m length connection cable with straight or angled M12 socket connector for industrial automation environments.

Starting at $15.50

Effective August 12th, 2025, ifm effector has added a 12% surcharge to this product. The surcharge will appear as a separate line item on the order.


View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Specs (67 Files)

Features

  • M12 (code A) connector
    • Straight or angled versions
  • 0.7 to 60m cable lengths
  • Halogen-free PUR cable jacket material
  • Nickel-plated brass coupling nut
  • 5 gold-plated contacts
  • 4 or 5 cores
  • FKM seal material
  • Resistant to oils and coolants
  • Coupling ring with locking mechanism
  • Mechanical end stop protects the O-ring from damage
  • Permanent, reliable sealing even when mounted without tools

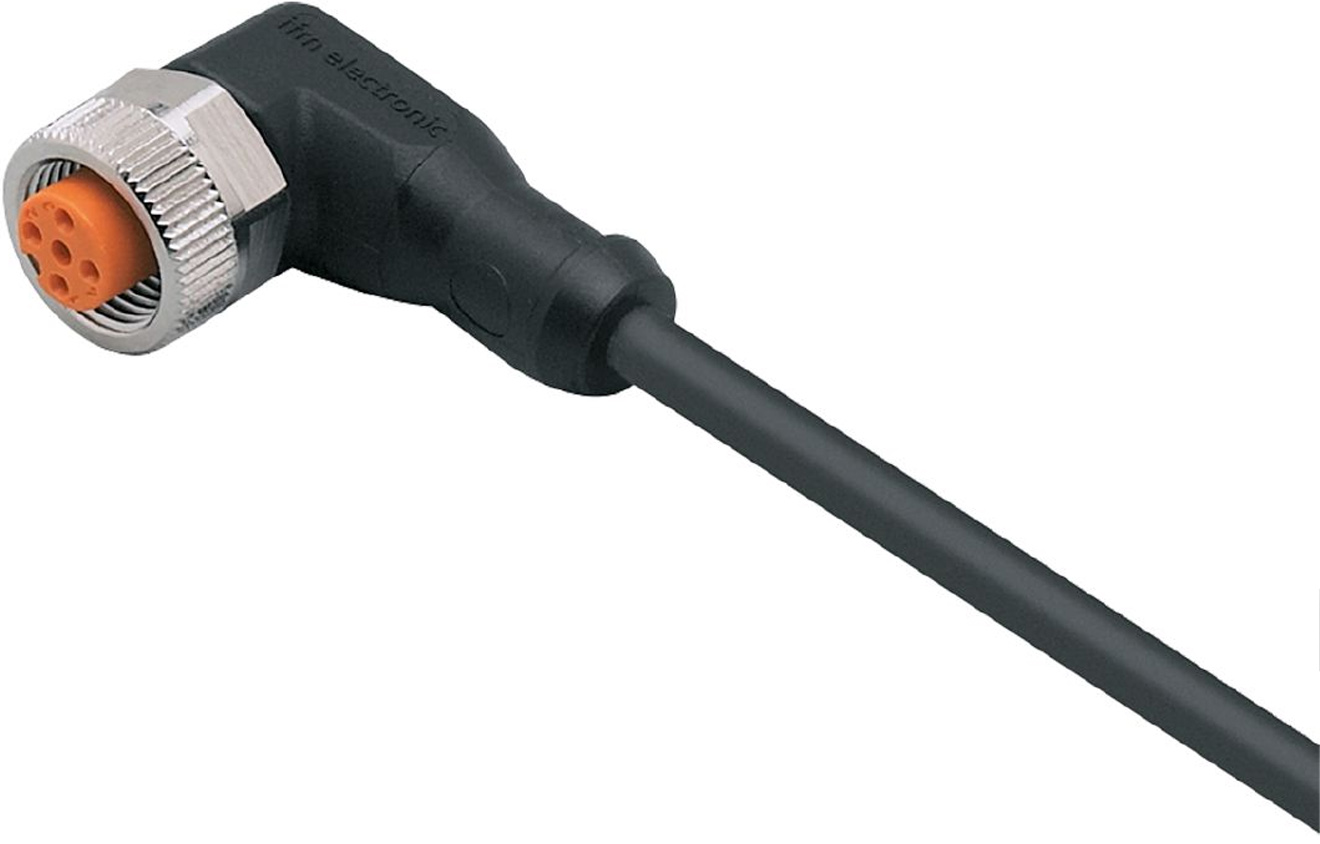

  • Optional LEDs for indicating switching and power status
  • UL, CE, REACH/RoHS declaration

The ifm efector EVC Series Female Cordset is a robust cable with overmolded connectors, designed to withstand heavy shock, vibration, and repeated disconnect cycles in demanding industrial automation environments. These cables feature an M12 socket connector with a nickel-plated brass coupling nut, FKM seal, and 5 gold-plated contacts. The EVC series cordset is configurable with straight or angled female connection threads, 4 or 5 cores, and a variety of electrical connections.
