ifm efector EVC Series Patchcord

0.15 to 20m, four core connection cables with M12 or M12/RJ45 connector for industrial automation environments.

Starting at $24.00

Effective August 12th, 2025, ifm effector has added a 12% surcharge to this product. The surcharge will appear as a separate line item on the order.


View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs (10 Files)

Features

  • M12 or M12/RJ45 connectors
    • Code A or D

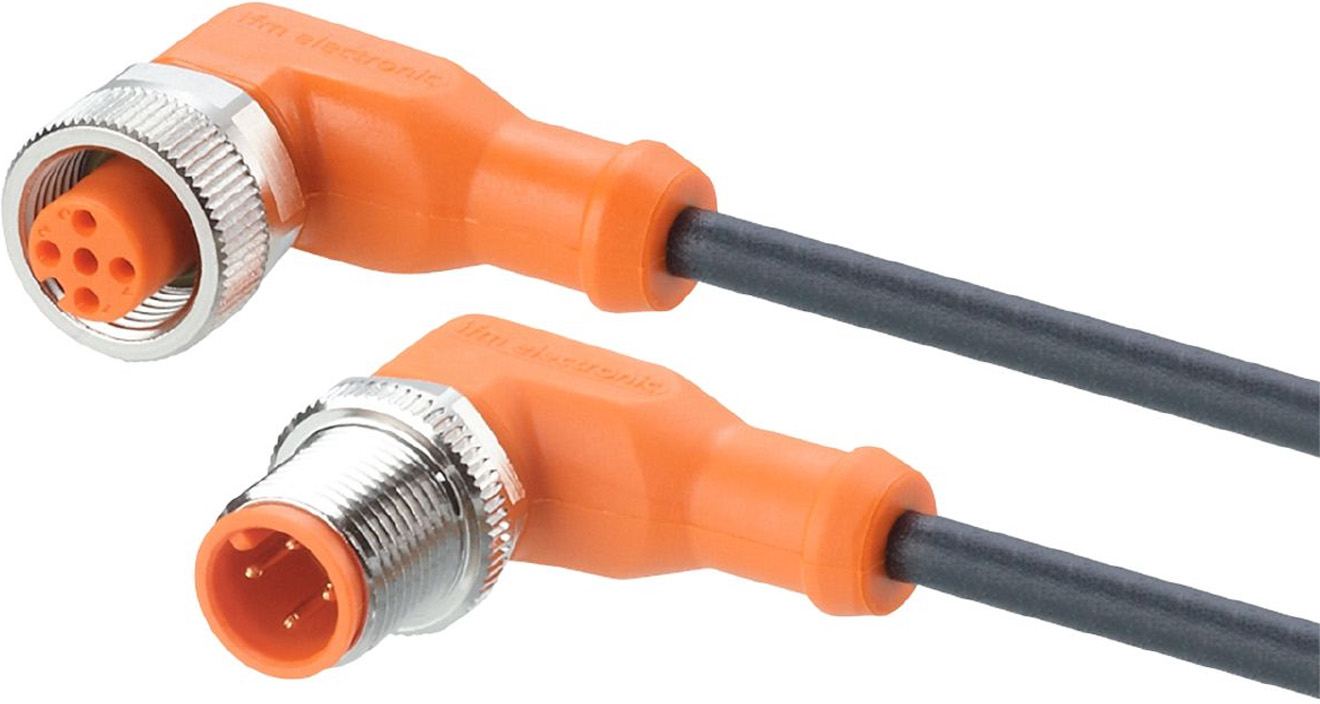

    • Straight or angled
  • 0.15 to 20m cable lengths
  • Halogen-free PUR cable jacket material
  • Nickel-plated brass coupling nut
  • 5 gold-plated contacts on M12 connections
  • Coupling rings have a locking mechanism
  • Mechanical end stop protects the O-ring from damage
  • Permanent, reliable sealing even when mounted without tools
  • UL, CE, REACH/RoHS declaration

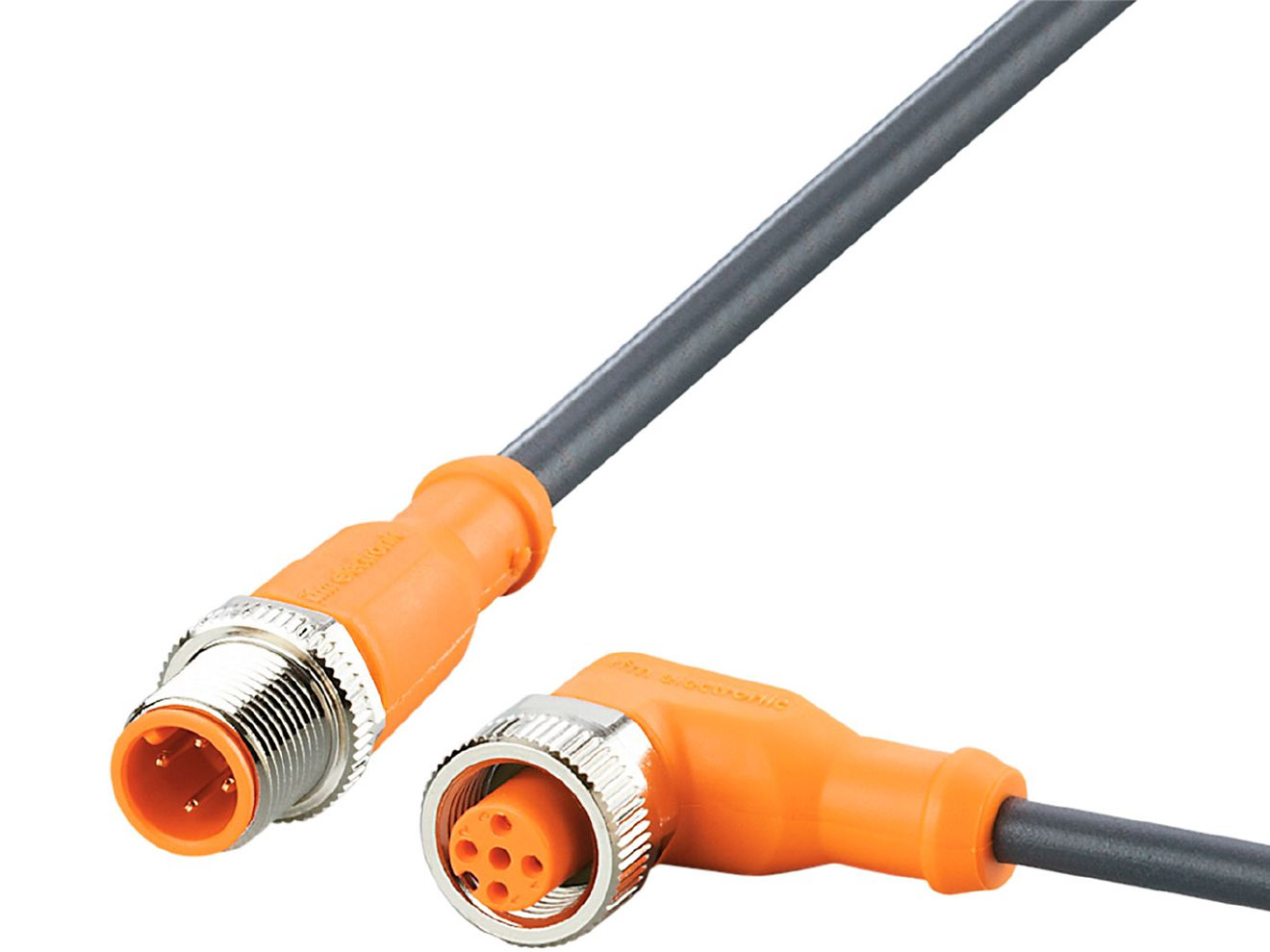

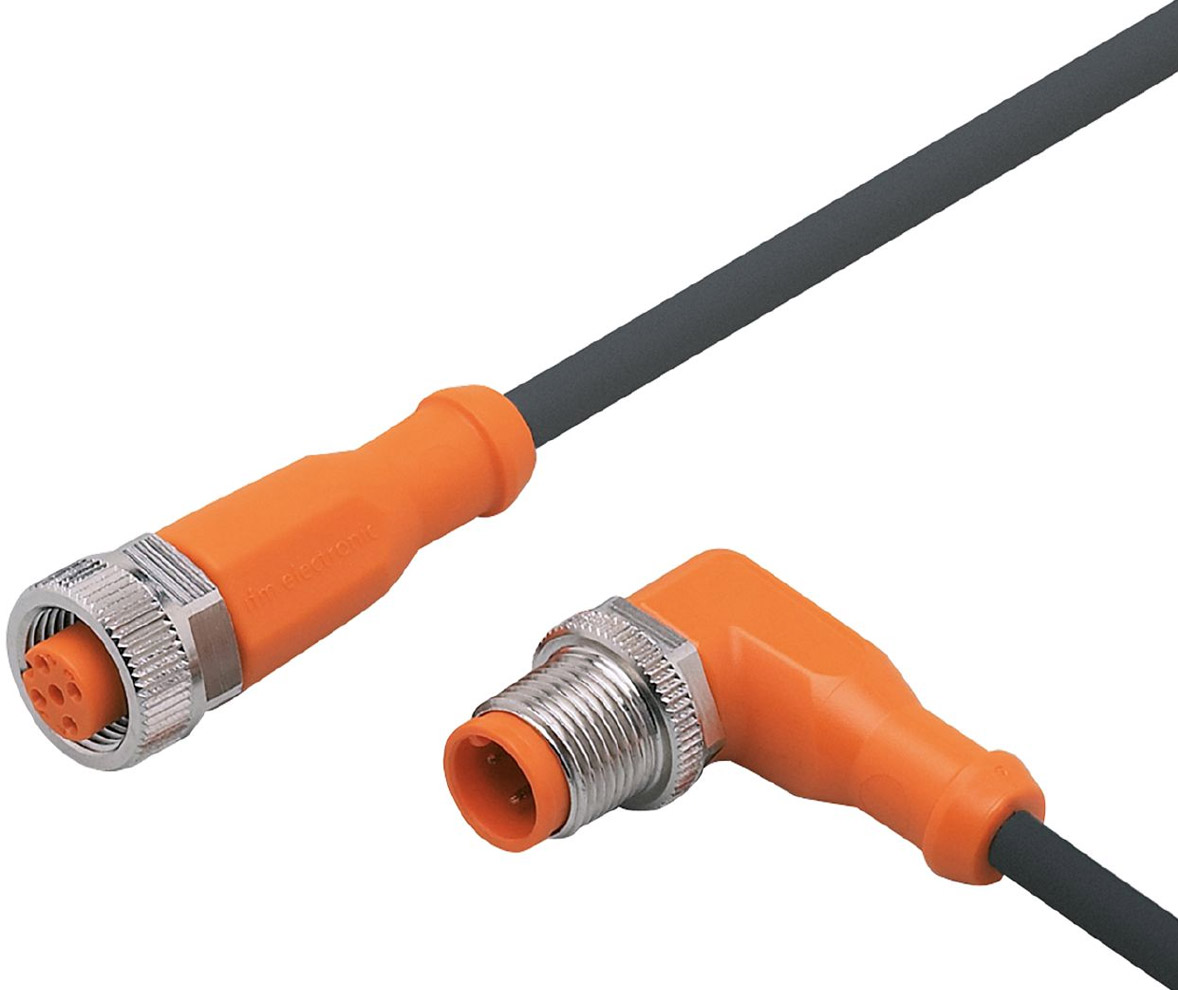

The ifm efector EVC Series Patchcord is a robust cable with overmolded connectors, designed to withstand heavy shock, vibration, and repeated disconnect cycles in demanding industrial automation environments. The M12 socket connectors feature a nickel-plated brass coupling nut, FKM seal, and 5 gold-plated contacts. The industrial Ethernet connection uses PROFINET Type C protocols and has gold-plated contacts. The EVC series patch cord is available with an M12 plug connection on one end and an M12 socket or RJ45 Ethernet connection on the other.
