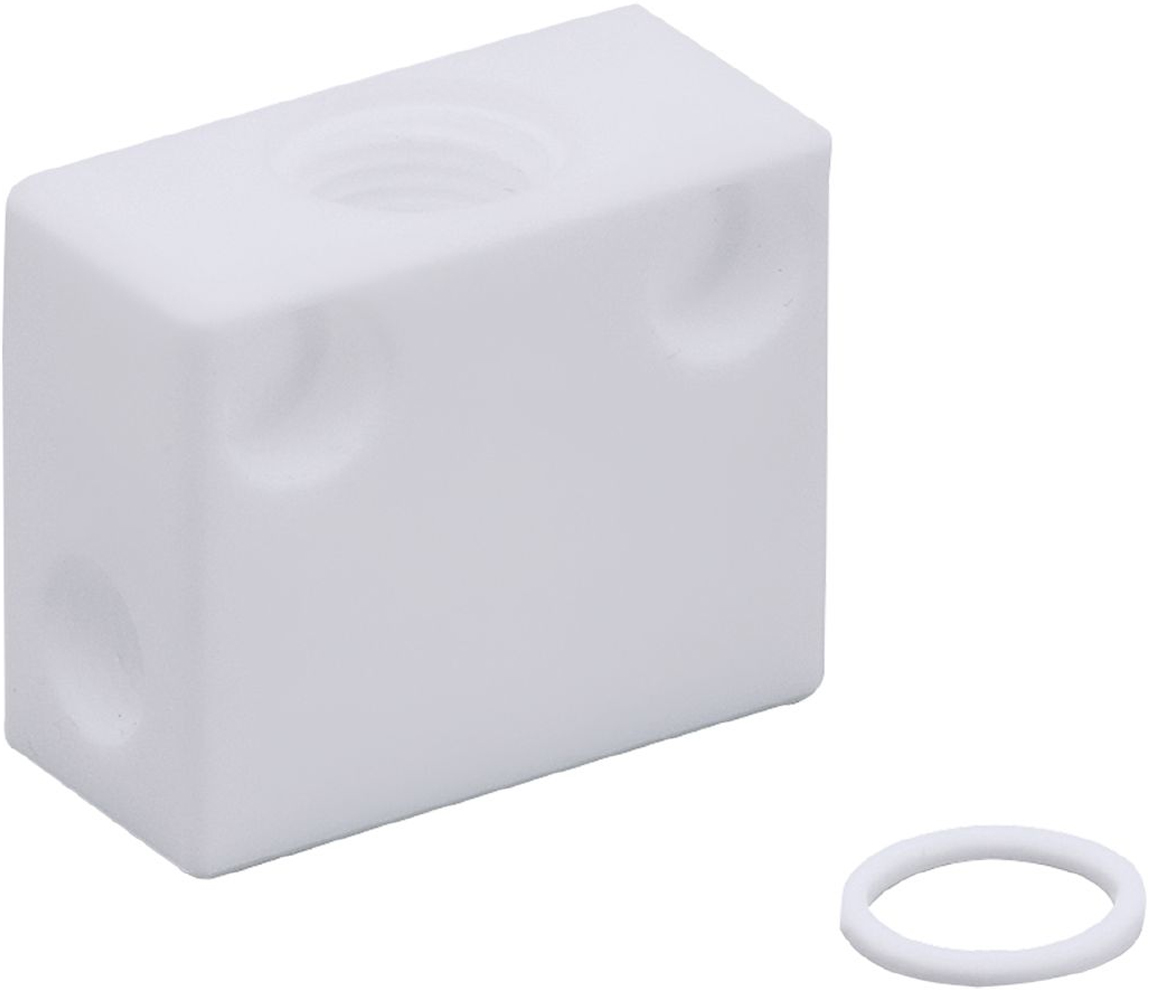

ifm efector E4 Series Process Adapter

PTFE and SS flow sensor adapters with high pressure resistances for use with liquids and gases.

Starting at $81.76

Effective August 12th, 2025, ifm effector has added a 12% surcharge to this product. The surcharge will appear as a separate line item on the order.


View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 7-10 business days
Product Specs (2 Files)

Features

  • Provides reliable detection of small flow rates
  • PTFE version:
    • For flow sensors with G¼ ceramic probe
    • 30 bar (3 MPa) pressure rating
    • 2 to 50ml/min flow range
    • G1/4 sensor connection
    • G1/8 process connection
    • Designed for aggressive media
  • Stainless steel version:
    • For flow sensors and compact flow monitors
    • 300 bar (30 MPa) pressure rating
    • 2 to 100ml/min flow range
    • M12 sensor connection
    • G1/8 process connection
    • Designed for harsh industrial environments
  • Installs via an internal G1/8A male thread in any mounting position
