ifm efector EVF Series Female Cordset

2 to 50m length connection cable with straight or angled M12 socket connector for food and beverage applications with aggressive chemicals.

Starting at $27.00

Effective August 12th, 2025, ifm effector has added a 12% surcharge to this product. The surcharge will appear as a separate line item on the order.


View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Specs (38 Files)

Features

  • MPPE cable jacket material
  • M12 connector, code A
  • IO-Link compatible
  • Stainless steel coupling nut material
  • 4 or 5 wires
  • 5 gold-plated contacts
  • 2 to 50m cable length
  • -25 to 100°C temperature range
  • LED status indicators are available with some cables
  • UL, CE, REACH/RoHS declaration

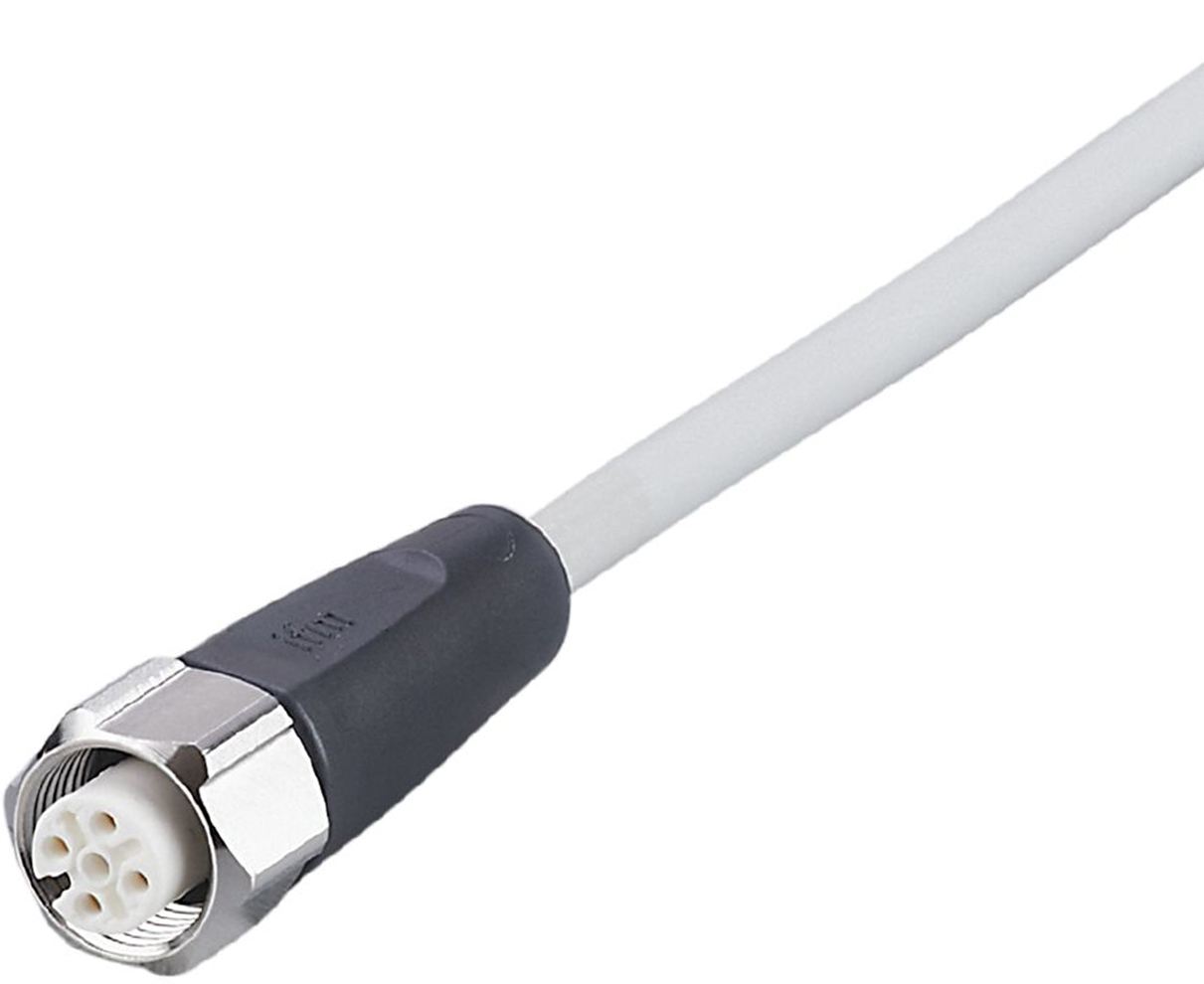

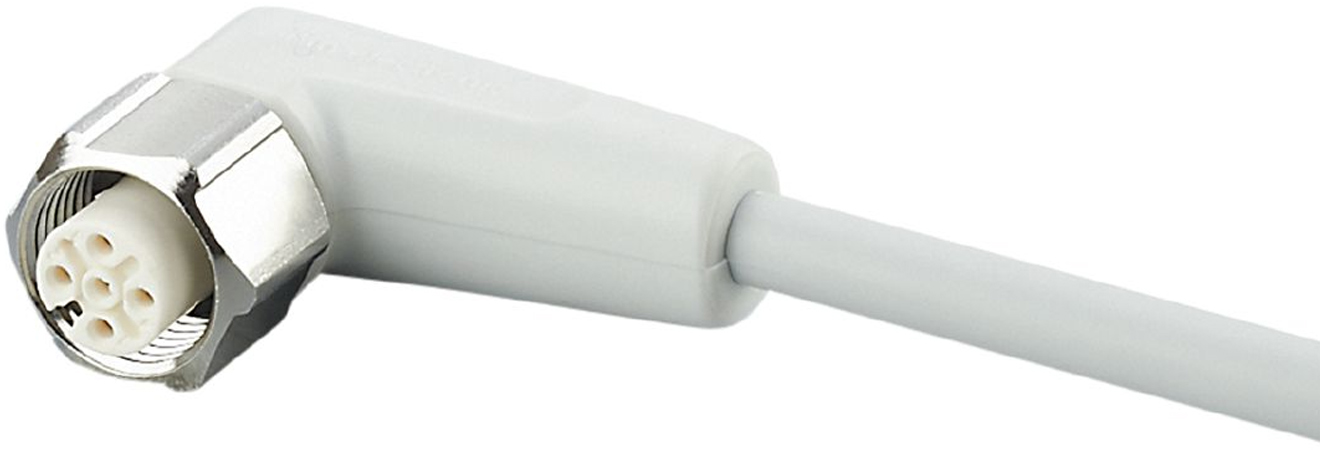

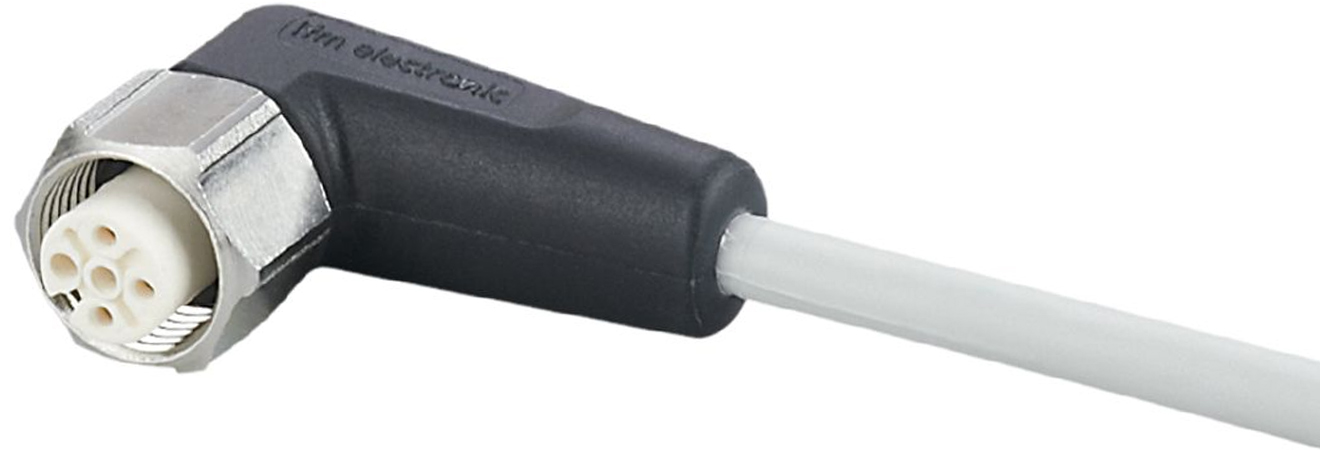

The ifm efector EVF Series Female Cordset is a durable connection cord designed for use in sanitary and wet areas in the food industry. They feature a cable jacket made from halogen-free, flame-retardant MPPE material and available with 4 or 5 wire cores and up to 50m cable lengths. The EVF series offers permanent, reliable sealing even when mounted without tools. It has a straight or angled M12 socket connector, with a locking coupling ring that provides vibration and shock resistance.
