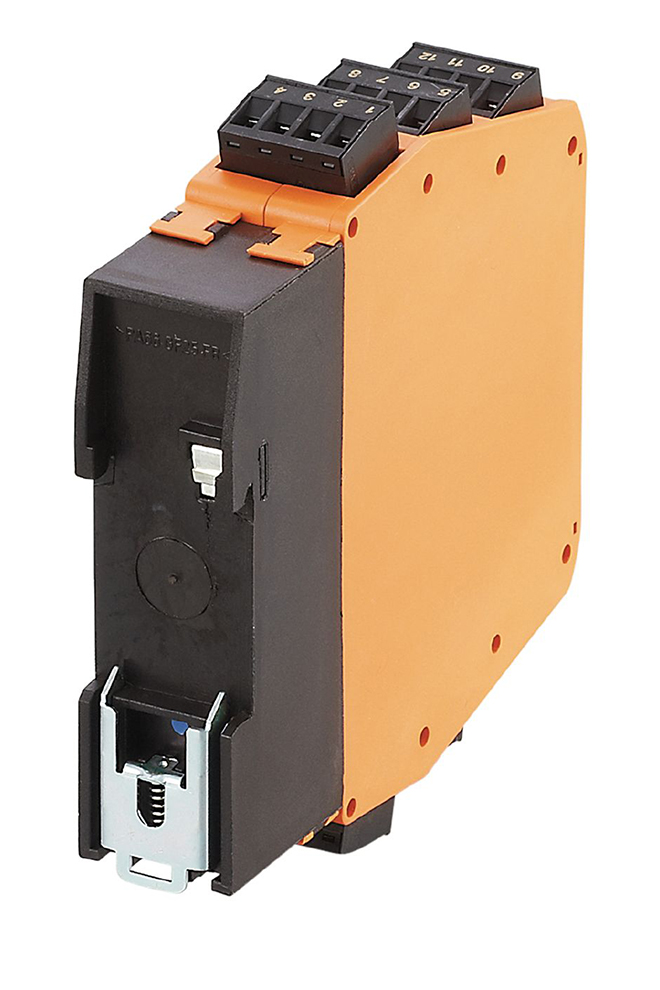

ifm efector SR0151 Flow Sensor Control Monitor

Control monitor for integrated flow, temperature and wire monitoring of the SF Series flow sensor.

$548.00

Effective March 30th, 2026, ifm effector has added an 8% surcharge to this product. The surcharge will appear as a separate line item on the order.


View Company Reviews
Part Numbers
  • SR0151
  • VS3000/24VDC
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs

Features

  • Selection liquids / gases:
    • Wire bridge
    • On delivery: monitoring of liquids
    • Monitoring of gases: link terminals 23 / 24
  • Electrical design: relay
  • Adjustable switching outputs for monitoring flow and temperature
  • Clearly visible multi-color LED bar graph display
  • Signal output via potential-free relay contacts
  • Number of channels: 1
  • Adjustment: potentiometer
  • Response time: <3s
  • Temperature range: 40 to 120°C
  • Operating voltage: 24VDC
  • Current consumption: 90mA
  • Materials: PBT
  • Protection class: III
  • Enclosure rating: IP20
  • Mounting: DIN rail (TH35 (EN 60715))
  • Combicon connector
  • MTTF: 263 years
