Optris CTi LThot Infrared Thermometer

Ambient temperatures up to 482°F without additional cooling.

Starting at $920.00

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs

Features

  • -40 to 1922°F temperature range
  • 8 to 14 µm spectral range
  • ±0.75% repeatability
  • 8-30 V DC power supply
  • ± 1% accuracy
  • 10 – 95%, non condensing relative humidity
  • 9.8ft standard cable
  • 26ft and 49ft cable option
  • CompactConnect or IRmobile configuration
  • Stainless steel housing

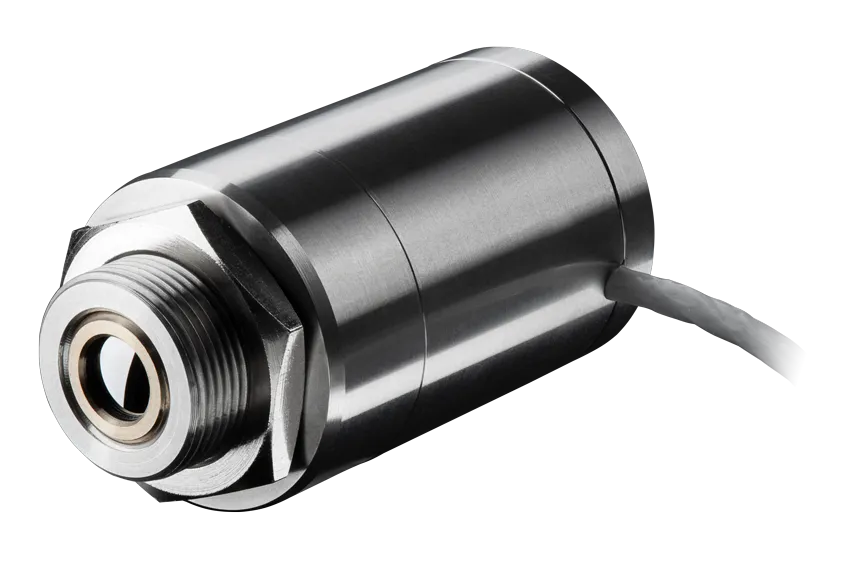

The Optris CTi LThot Infrared Thermometer offers temperature enhanced resistance of the sensing head, allowing operation in ambient temperatures of up to 482°F without additional cooling. This elevated temperature rating makes it suitable for various applications, including dryers, furnaces, heat-treating processes of plastics and textiles processing, and semiconductor production. The IR thermometer CTi LThot with temperature measurement capabilities ranging from -40 to 1922°F, designed with a stainless steel housing.

The adaptability of the Optris CTi LThot series is further emphasized by the range of analog and digital outputs provided by the electronics box, including 0/4 – 20 mA, 0 – 5 V, 0 – 10 V, thermocouple (type K), USB, RS485, RS232 interfaces, relay outputs (2 x optically isolated), ProfiNet, Modbus TCP, Modbus RTU Ethernet TCP and EtherNet/IP. This adaptability facilitates seamless integration into machinery, enhancing utility across various applications.
