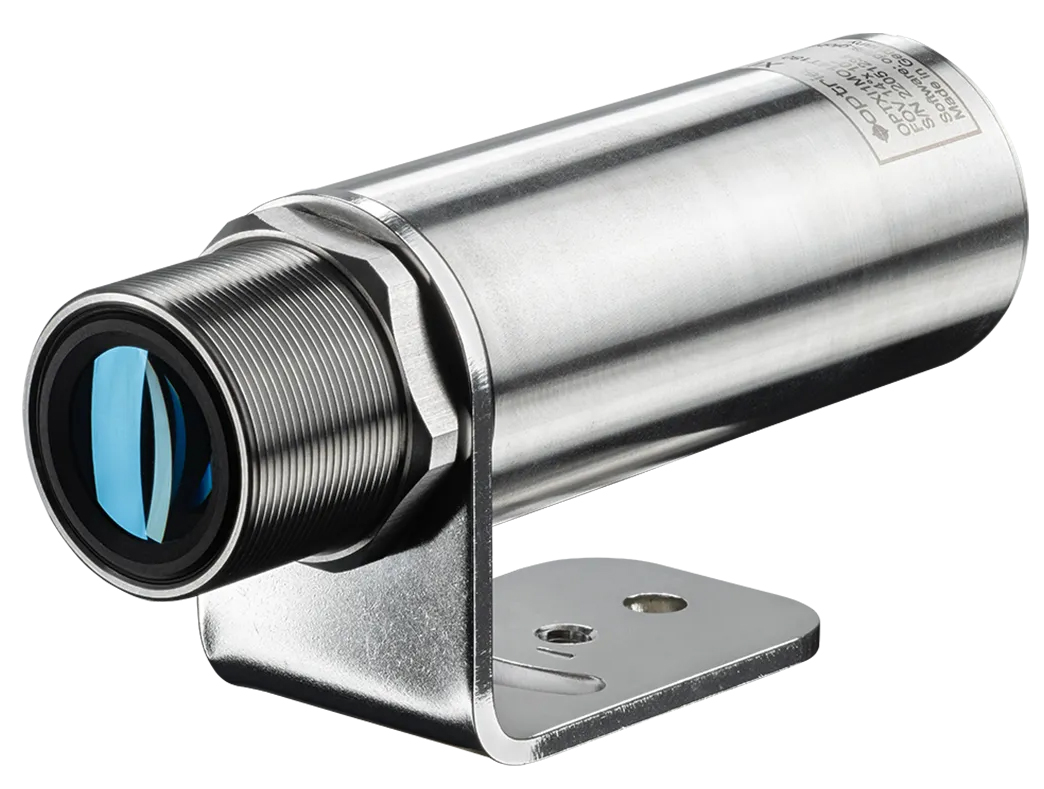

Optris Xi 05M MeltScope Infrared Camera

Mid-resolution thermal imaging at 396 by 300 pixels, supporting temperature measurements from 950°C to 2450°C without the need for sub-ranges.

$4,650.00

View Company Reviews
Part Number
  • OPTXI05MO14T245
Manufactured
Includes
Availability
  • Usually ships in 7-9 weeks
Product Family
Product Specs

Features

  • 14° x 10° field of view
  • 950 to 2450°C temperature range
  • 0 to 50°C operating temperature
  • 1x analog output (0/4-20 mA), 1x input (analog or digital); optically isolated
  • 15 µm pixel pitch
  • 500 to 540 nm spectral range
  • 25mm focal length
  • 300mm minimum distance to target
  • Auto hot spot finder
  • Various fieldbus communication options
  • Stainless steel housing
  • IP67, NEMA-4

What's in the Box

  • Process imager Xi 05M
  • Ethernet / PoE cable (1 m)
  • USB cable (1m)
  • Cable for output/input (1 m) incl. terminal block
  • Mounting bracket with nut
  • Software package optris PIX Connect
  • Quick Start Guide

The Optris Xi 05M MeltScope Infrared Camera, a short-wavelength infrared camera, excels in non-contact thermal imaging of challenging objects. It accurately measures the surface temperatures of hot very metals, steel or ceramics. Featuring Ethernet, USB interfaces, and analog and digital process interfaces, it enables seamless integration into control systems and machinery. The short-wavelength spectral range of the Optris Xi 05M MeltScope thermal camera matches the peak emissivity of most metals, enabling accurate non-contact temperature measurement.

The Xi 05M offers autonomous hot-spot detection, ensuring effective monitoring and inspection. The mid-resolution detector (396 × 300 pixels) measures temperatures from 950°C to 2450°C without sub-ranges. Its high distance-to-spot ratio allows precise measurements from afar, while the motorized focus enables remote adjustment.

Built for industrial reliability, the compact and waterproof thermal camera supports fixed or mounted installations. Featuring Ethernet and USB interfaces, it delivers 20 Hz imaging and integrates easily into control systems. Additional features include automatic spot detection, analog output (0/4–20 mA), and fieldbus compatibility (Ethernet/IP, Modbus TCP/IP, RS485, Profinet). Optional accessories such as water cooling and air purges extend its use in harsh environments.
