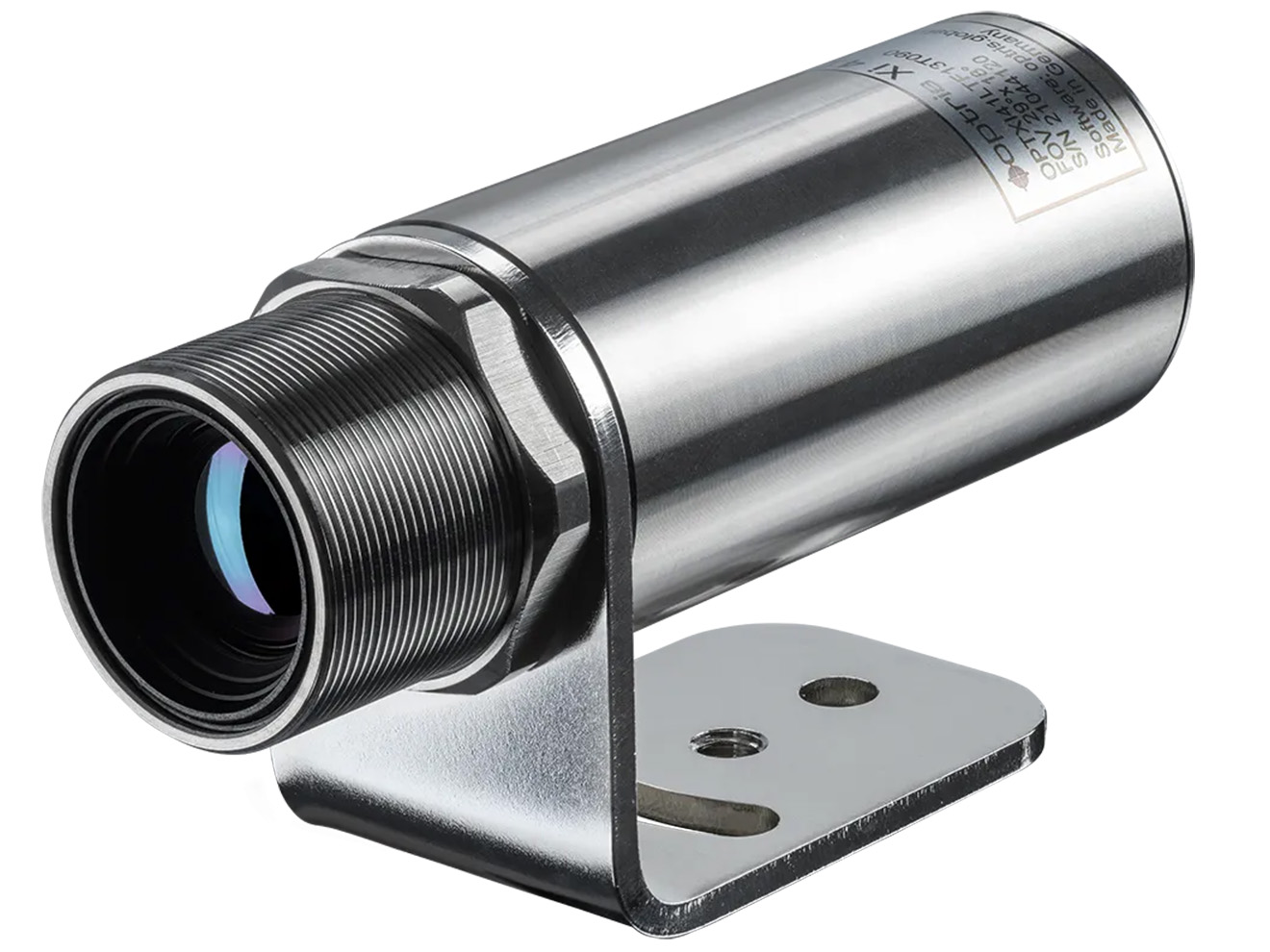

Optris Xi 320 MT Infrared Camera
320 × 240 pixel resolution, 887 to 3092°F, 1 K thermal sensitivity, 30 Hz Ethernet / 5 Hz USB frame rate with motorized focus.
Overview
Features
- Optical resolution / distance-to-spot ratio:
- 561:1 (11°×8° lens)
- 355:1 (17°×13°lens)
- 209:1 (29°×21°lens)
- 152:1 (41°×30°lens)
- Analog I/O:
- 1x analog output, 1x input, optically isolated
- Optional PIF with 3 outputs/inputs
- Temperature range: 887°F to 3092°F
- Detector: uncooled bolometer, 12µm pixel pitch
- Spectral range: 3.9µm
- Interfaces: Ethernet 30 Hz / USB 2.0 5 Hz, PoE
- Motorized focus, non-interchangeable lenses
- Housing: IP67 stainless steel
- Power: USB, PoE, 5 to 30VDC, max 2.5W
What's in the Box
- USB cable (1m)
- Ethernet PoE cable (1m)
- Cable for output/input (1m)
- Mounting bracket with nut
- Optris PIX Connect software
Description
The Optris Xi 320 MT infrared camera is a temperature measuring tool in industrial environments. It uses a 3.9µm uncooled bolometer detector with a 12µm pixel pitch and captures temperatures from 887 °F to 3092 °F. A motorized focus lens allows precise adjustment at varying distances, and the rugged IP67 stainless steel housing ensures reliable operation in harsh conditions. The camera supports Ethernet (30 Hz) and USB 2.0 (5 Hz) interfaces, with one analog output and input, and can be powered via 5–30 VDC, USB, or Power-over-Ethernet. Optical resolution depends on lens selection, ranging from 561:1 to 152:1, with minimum detectable spot sizes from 0.5mm to 0.9mm. Configuration and analysis are performed via Optris PIX Connect software.
