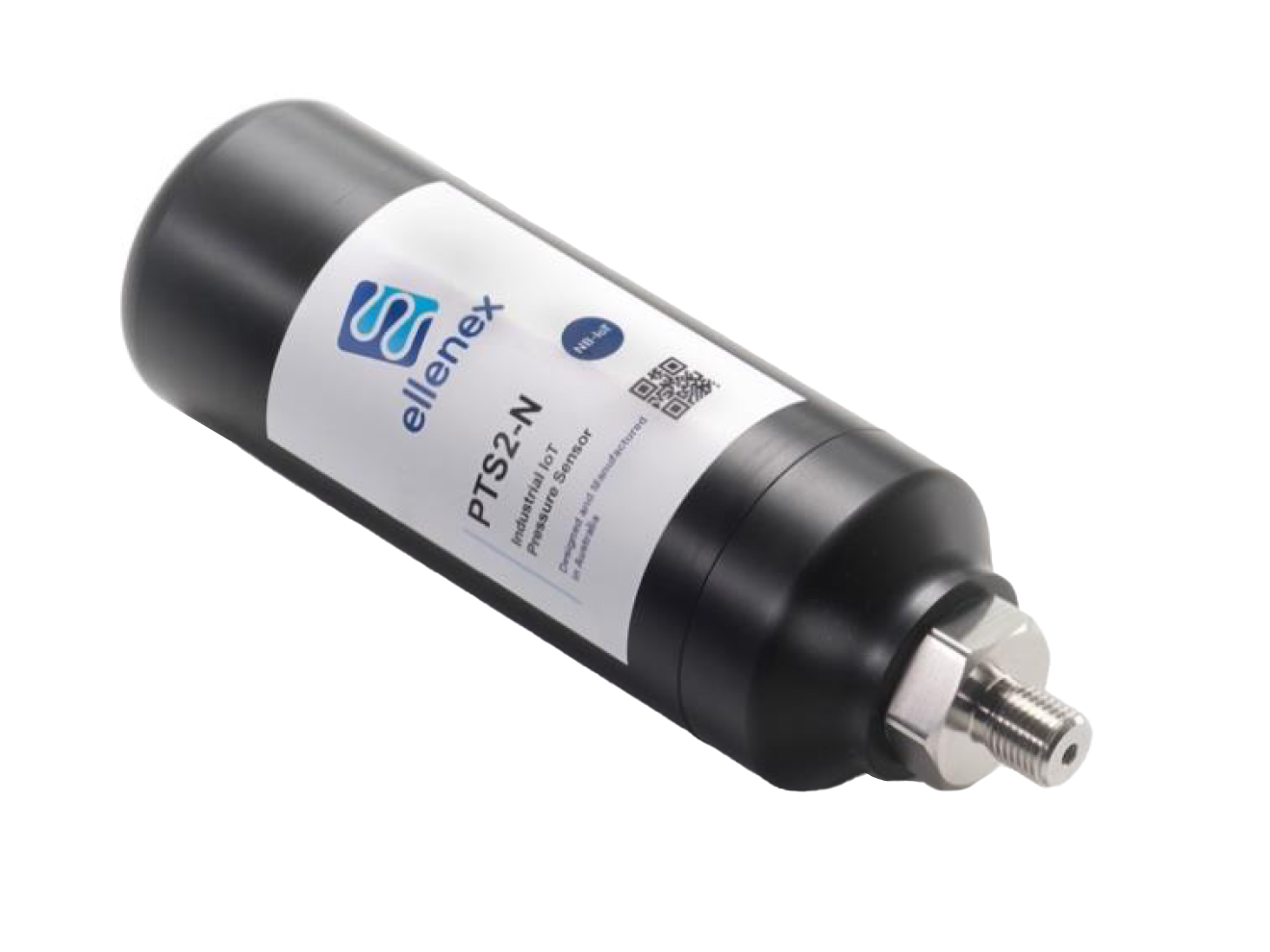

Ellenex PTS2-N Low Power Pressure Transmitter

Designed for outdoor applications, 1 to 1000bar measurement range, NB-IoT or LTE Cat-M1 operation.

Starting at $575.85

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 6-8 weeks
Product Specs

Features

  • 1 to 1000bar sensor measurement range
  • ±0.25 accuracy
  • ±0.01 resolution (% span)
  • Built-in Replaceable 3.6V Lithium Battery
  • Vented Gauge, Sealed Gauge and Absolute pressure references
  • Cat-NB1 (NB-IoT) or LTE Cat-M1 operated sensor
  • Compatibility with common communication protocols
    • UDP, LwM2M, MQTT, NIDD
  • Materials of construction:
    • O-ring: Viton
    • Body: SS304
    • Diaphragm: SS316
    • Oil: Silicon/Olive
    • Enclosure: ASA/POM
  • G1/4, G/12 process connections
    • NPT and other ports available upon request
  • Internal antenna as standard
  • IP65, UV Protected enclosure
    • IP66 ASA enclosure with rectangular enclosure

The Ellenex PTS2-N Low Power Pressure Transmitter is designed for liquid and gas media applications, offers NB-IoT or Cat-M1 communication standards, and delivers high-accuracy performance across a wide range of industrial applications. The PTS2-N offers long-term durability and reliable operation in harsh environments. Designed with low power consumption, the PTS2-N ensures efficient, extended operation, and is suitable for use with liquids and gasses with stainless steel compatibility.

Applications:

  • Pump Performance Monitoring
  • Hydraulic and Pneumatic Systems Monitoring
  • Water Pipeline Pressure Monitoring
  • Liquid Storage Level Monitoring
  • Pressurised System Monitoring
  • Spraying System Monitoring
  • Chiller and Cooling System Monitoring
  • Air Compressor Monitoring
