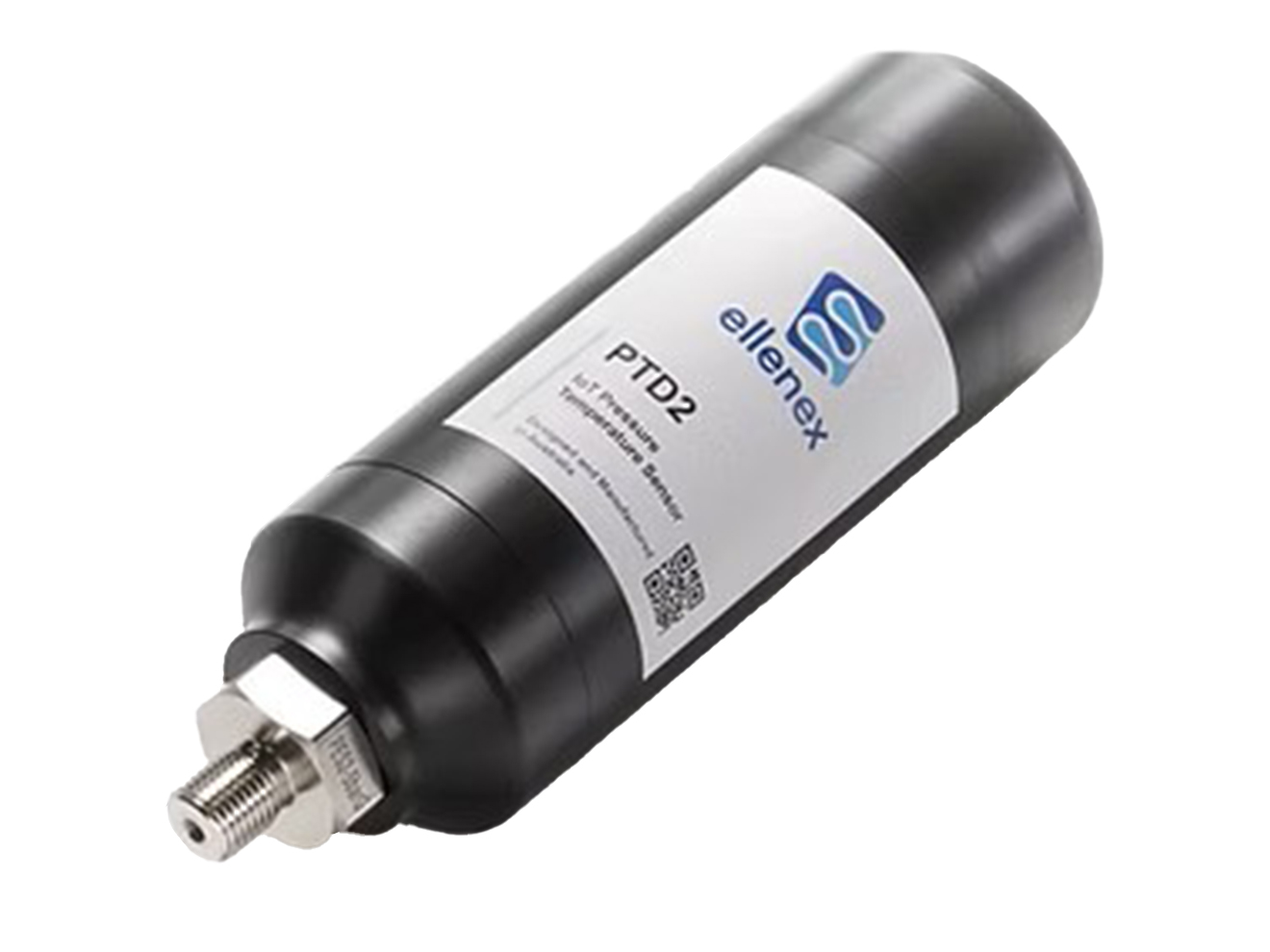

Ellenex PTD2-L Low Power Pressure Transmitter
Pressure transmitter with inbuilt temperature sensor designed for outdoor applications. 1 to 1000bar measurement range, compatible with all LoRaWAN frequencies.
Overview
Features
- 1 to 1000bar sensor measurement range
- ±0.25 accuracy
- ±0.01 resolution (% span)
- Temperature sensor with ±0.2°C accuracy
- Mounted on the back of pressure sensor, does not reflect the media temperature
- Built-in Replaceable 3.6V Lithium Battery
- Vented Gauge, Sealed Gauge and Absolute pressure references
- LoRaWAN 1.0.2revB, Class A
- AS923, EU868, US902-928, AU915-928 frequency zones
- Materials of construction:
- O-ring: Viton
- Body: SS304
- Diaphragm: SS316
- Oil: Silicon/Olive
- Enclosure: ASA/POM
- G1/4, G/12 process connections
- NPT and other ports available upon request
- External antenna as standard
- IP65, UV Protected enclosure

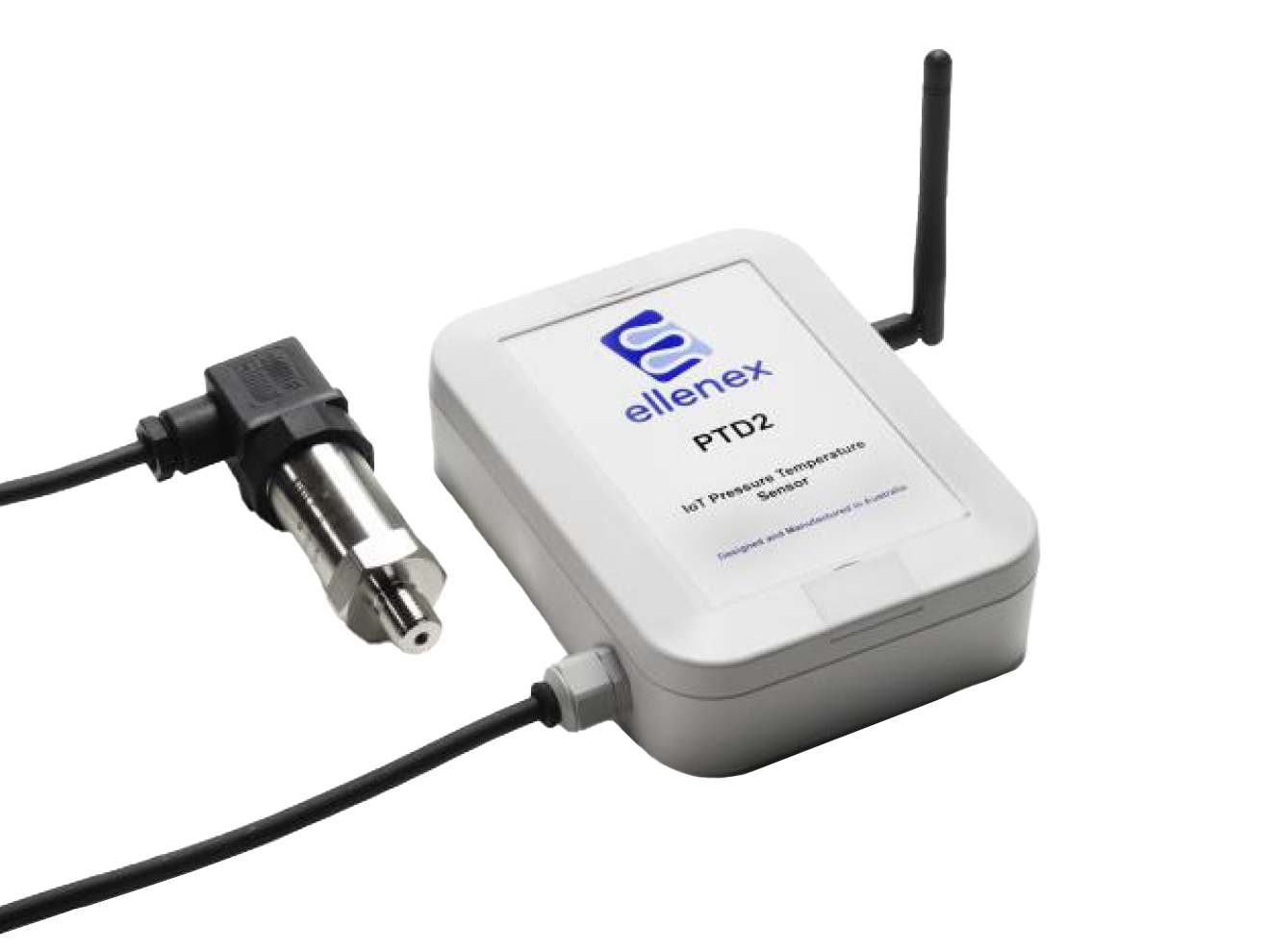

- IP66 ASA enclosure with rectangular enclosure
Description
The Ellenex PTD2-L Low Power Pressure Transmitter is designed for liquid and gas media applications, is compatible with all LoRaWAN frequencies, and delivers high-accuracy performance across a wide range of industrial applications. The PTD2-L offers long-term durability and reliable operation in harsh environments. Designed with low power consumption, the PTD2-L ensures efficient, extended operation, and is suitable for use with liquids and gasses with stainless steel compatibility. Inbuilt temperature sensor does not reflect temperature of media.
Applications:
- HVAC and Air Conditioning Systems
- Leakage Monitoring Systems
- Air Filter Performance Monitoring
- Heat Recovery Systems
- Fan and Ventilation System Performance Monitoring
- Air Velocity Monitoring
- Pressurised Chambers Monitoring
- Blower Vacuum Monitoring
- Clean Rooms positive pressure indication
- Fan pressure indication
- Burner and Boiler Monitoring Systems
