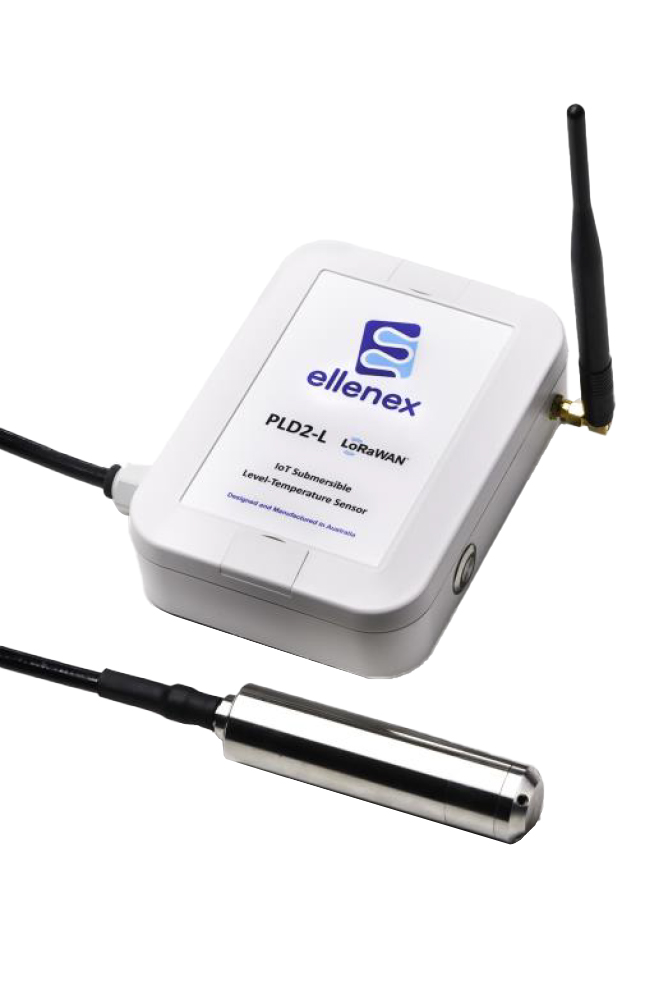

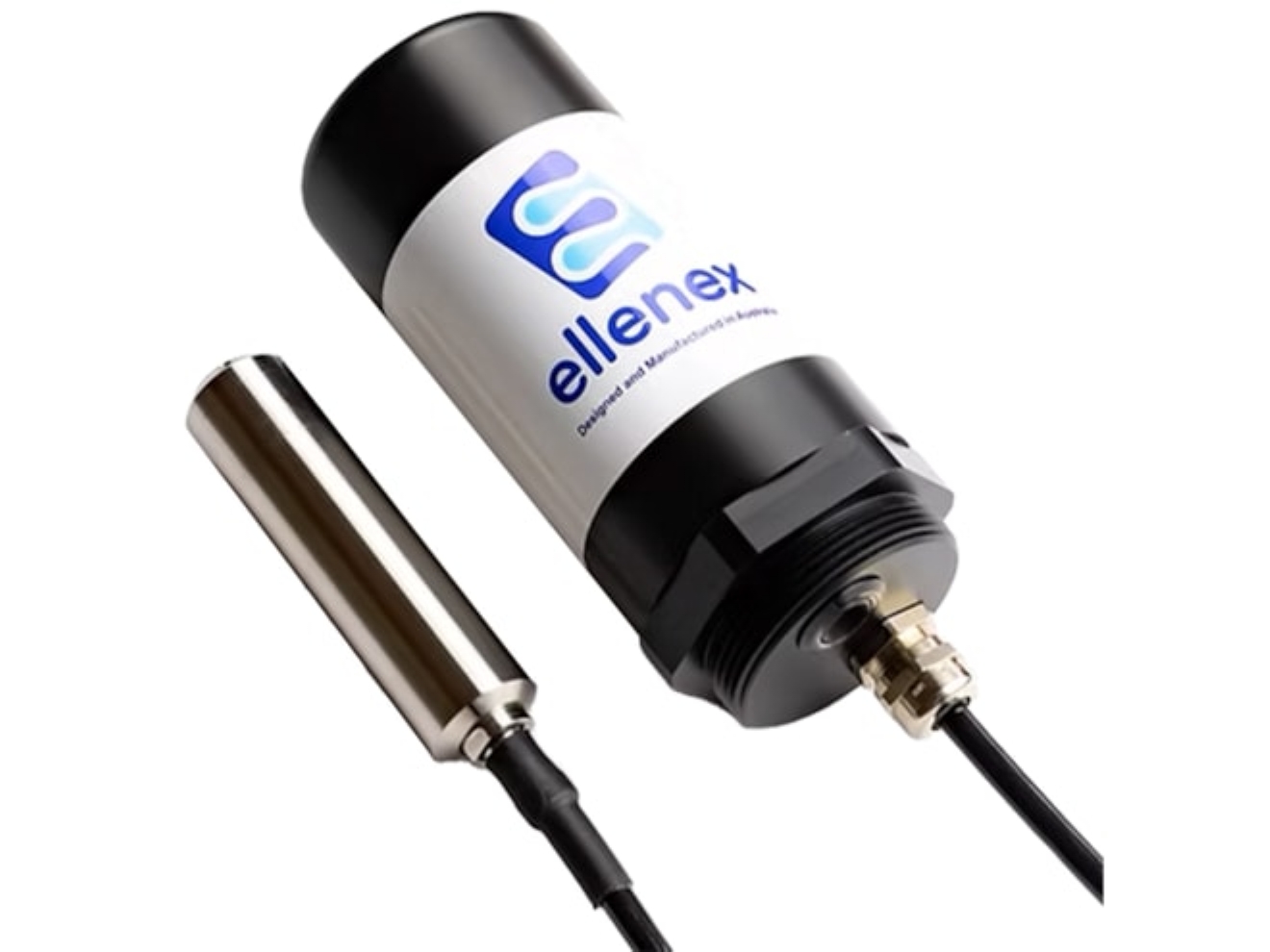

Ellenex PLD2-L Low Power Submersible Level Transmitter
Level transmitter with inbuilt temperature sensor designed for outdoor applications. 1 to 50m H2O measurement range, compatible with all LoRaWAN frequencies.
Overview
Features
- 1 to 50m H2O sensor measurement range
- ±0.2 accuracy
- ±0.01 resolution (% span)
- Temperature sensor with ±0.2°C accuracy
- Mounted on the back of level sensor, does not reflect the media temperature
- Built-in Replaceable 3.6 V Lithium Battery
- Vented Gauge Pressure Reference
- LoRaWAN 1.0.2revB, Class A
- AS923, EU868, US902-928, AU915-928 frequency zones
- Materials of construction:
- O-ring: Viton
- Body: SS304
- Diaphragm: SS316
- Oil: Silicon/Olive
- Enclosure: ASA/POM
- External antenna as standard
- IP66, UV Protected enclosure and IP68 sensor head
Description
The Ellenex PLD2-L Low Power Level Transmitter is designed for liquid media applications, is compatible with all LoRaWAN frequencies, and delivers high-accuracy performance across a wide range of industrial applications. The PLD2-L offers long-term durability and reliable operation in harsh environments. Designed with low power consumption, the PLD2-L ensures efficient, extended operation and is suitable for use with liquids that are compatible with stainless steel. Inbuilt temperature sensor does not reflect temperature of media.
Applications:
- Water Tank
- Diesel Tank
- Chemical Tanks
- Liquid Storage
- Liquid Delivery Systems
- Hydraulic Containers
- Water Resources Level
- Wastewater Tank
- Flood Monitoring
- Water Trough
