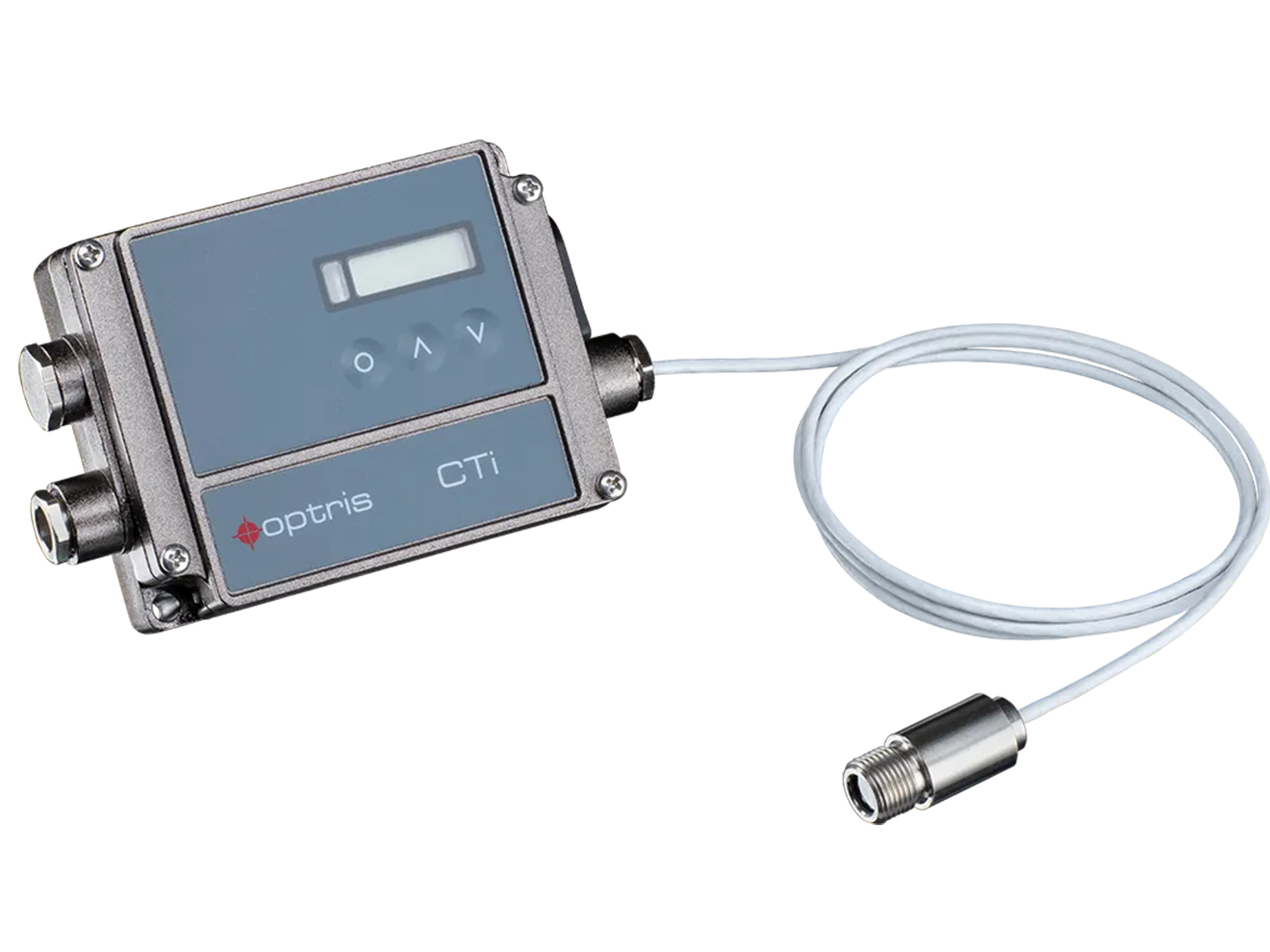

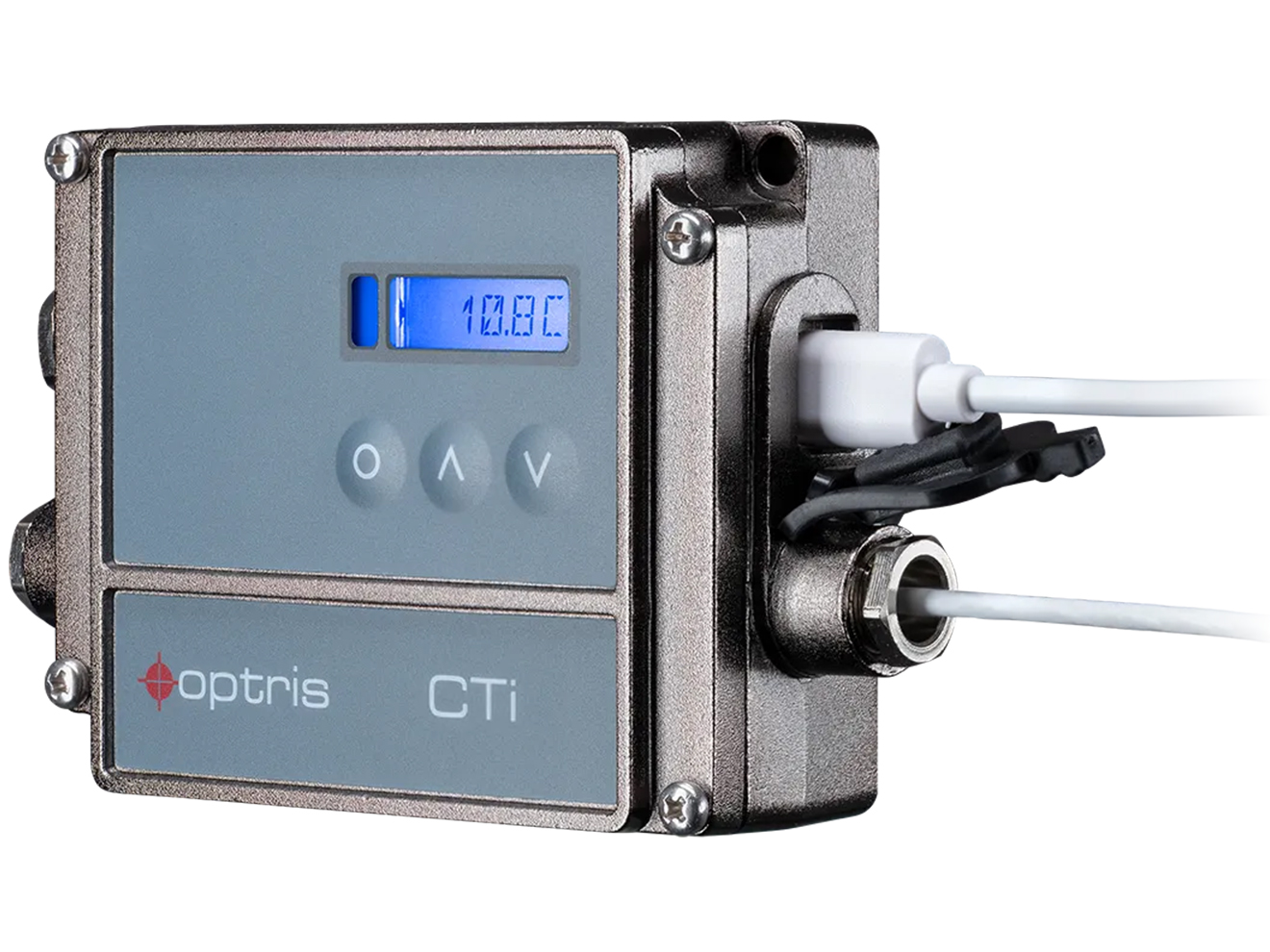

Optris CTi 1M Infrared Thermometer
Precise non-contact miniature infrared thermometer with a 662 to 3992°F temperature range and 1.0µm wavelength for accurate measurement of metals.
Overview
Features
- Spectral range: 1.0µm
- 110µs exposure time
- 320µs response time
- Operating temperature:
- -4 to 257°F (sensing head)
- -4 to 185°F (electronics)
- Storage temperature:
- -40 to 257°F (sensing head)
- -40 to 185°F (electronics)
- Temperature ranges:
- 662 to 1472°F (1MXL)
- 905 to 2102°F (1ML)
- 1202 to 3362°F (1MH)
- 1472 to 3992°F (1MH1)
- Optical resolution:
- 15:1 (1MXL)
- 40:1 (1ML)
- 75:1 (1MH / 1MH1)
- Analog outputs: 4 to 20mA, 0 to 10 V, thermocouple K
- Adjustable emissivity: 0.05 to 1.100
- IP65 (NEMA-4) environmental rating
What's in the Box
- Sensing head
- Electronics unit
- 3m standard cable
Description
The Optris CTi 1M infrared thermometer provides non-contact temperature measurement for metals, with a range of 662 to 3992°F. Its short 1.0μm wavelength minimizes errors when measuring surfaces with low or unknown emissivity, making it ideal for applications such as metal processing, metal oxides, and ceramic materials.
This compact device features a small sensing head that fits into tight spaces and operates in ambient temperatures up to 257°F without additional cooling. It offers optical resolutions of 15:1 (1MXL), 40:1 (1ML), and 75:1 (1MH/1MH1), with a fast exposure time of 110µs and response time of 320µs, allowing accurate readings even on moving or hot surfaces.
