Optris CTi LTex Infrared Thermometer
An explosion proof infrared thermometer with a temperature range of -58 to 1922°F, spectral range of 8 to 14µm, and 22:1 optical resolution.
Overview
Features
- Temperature range: -58 to 1922°F
- Spectral range: 8 to 14µm
- Response time: 150ms
- High ambient temperature rating: up to 356°F
- Higher Distance-to-spot size ratio: up to 22:1
- ATEX/explosion area compliance
Description

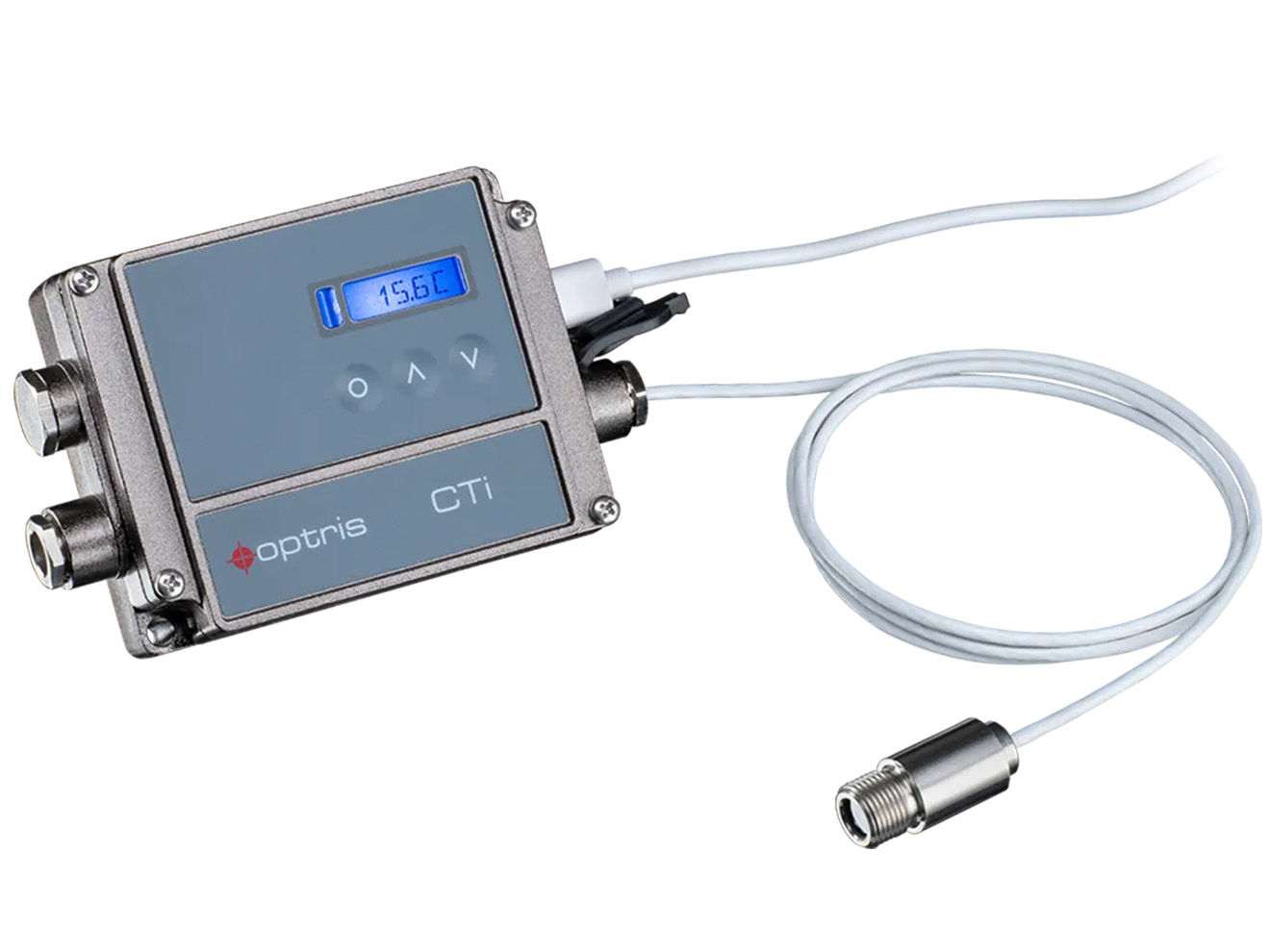

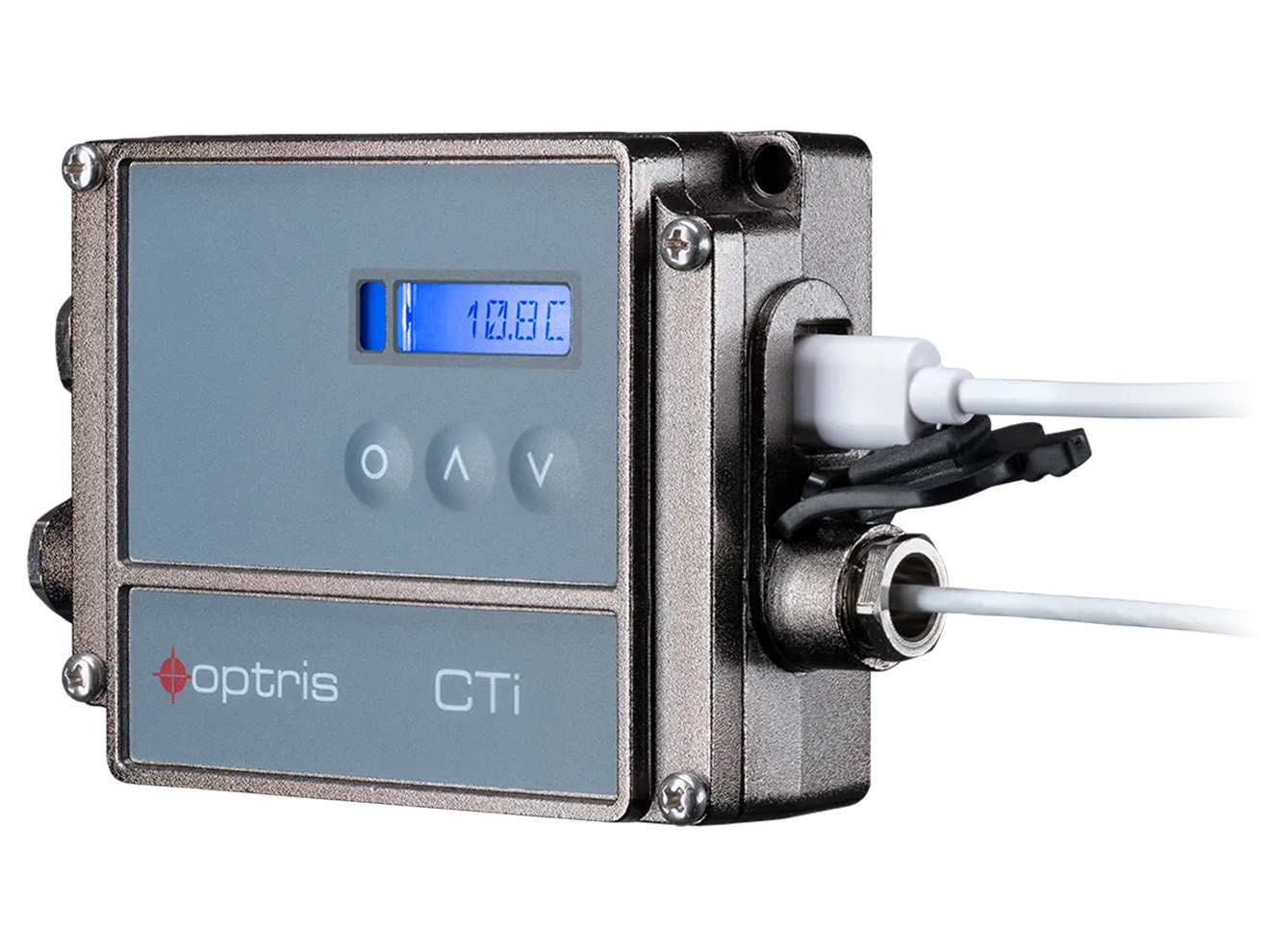

The Optris CTi LTex infrared thermometer is an explosion-proof, two-piece measuring system designed to be used hazardous areas. It features a passive IR sensing head and a separate electronics unit, allowing installation in Zone 1 and Zone 2 environments. The sensor provides temperature measurement over a -58 to 1922°F range with a spectral range of 8 to 14µm and selectable optical resolutions of 2:1, 15:1, or 22:1.
