Optris CTi LThotex Infrared Thermometer
A non-contact infrared thermometer delivering precise measurements from -58 to 1922°F with a fast 40ms response for hazardous industrial environments.
Overview
Features
- Temperature range: -58 to 1922°F
- Spectral range: 8 to 14µm
- Response time: 40ms
- High ambient temperature rating: up to 482°F
- Measurement accuracy ±1 % or ±2.7°F
- Multiple analog outputs: 4 to 20mA, 0 to 5 V, 0 to 10 V, thermocouple type K
Description

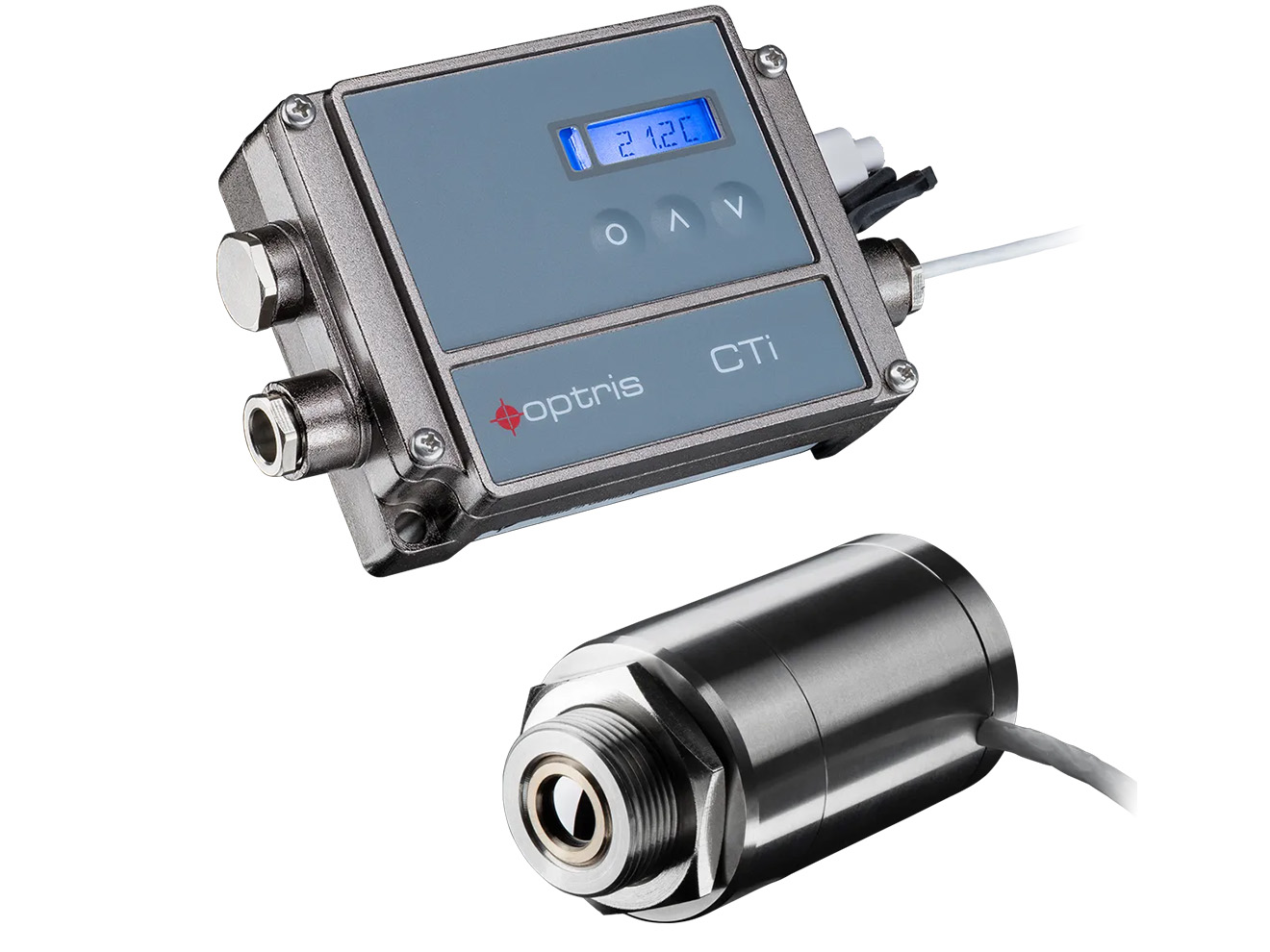

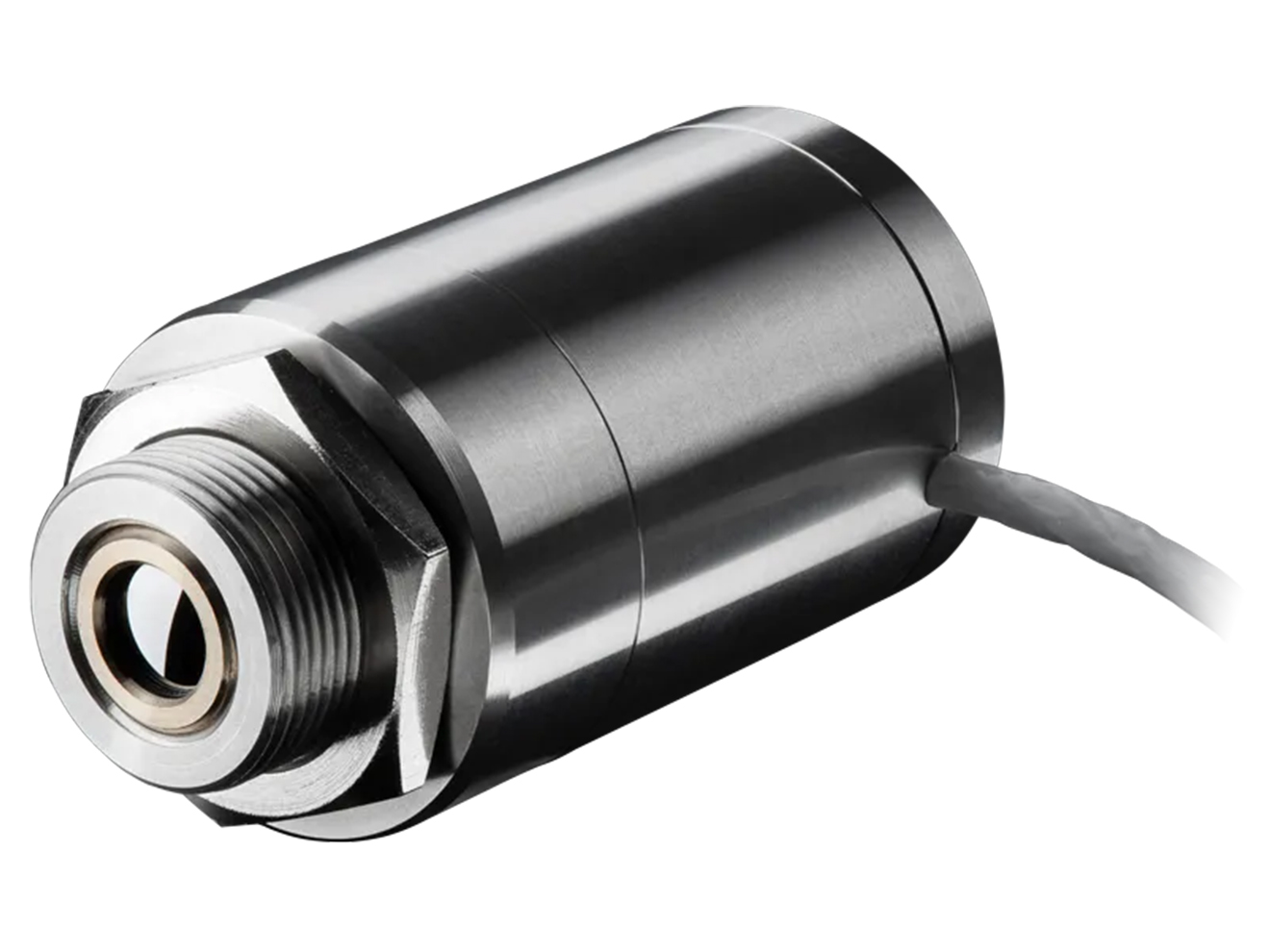

The Optris CTi LThotex infrared thermometer is an intrinsically safe device designed for non-contact temperature measurement in hazardous environments. It measures temperatures from -58 °F to 1922 °F with an accuracy of ±1 % or ±2.7 °F and a response time of 40ms. The sensor head is IP65-rated and operates in ambient temperatures up to 482°F without external cooling.
Signal processing includes peak hold, valley hold, and averaging, with extended hold functions using threshold and hysteresis. Analog outputs include 4 to 20mA, 0 to 5 V, 0 to 10 V, and thermocouple type K. The sensing head is interchangeable, and cables are available in 3m, 8m, and 15m lengths.
