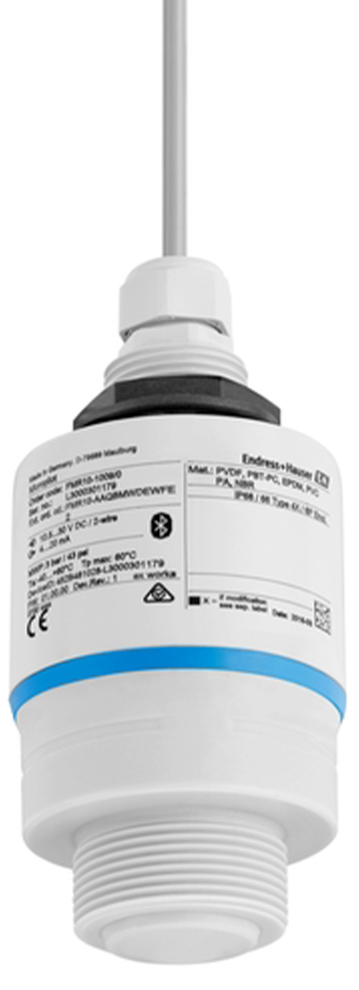

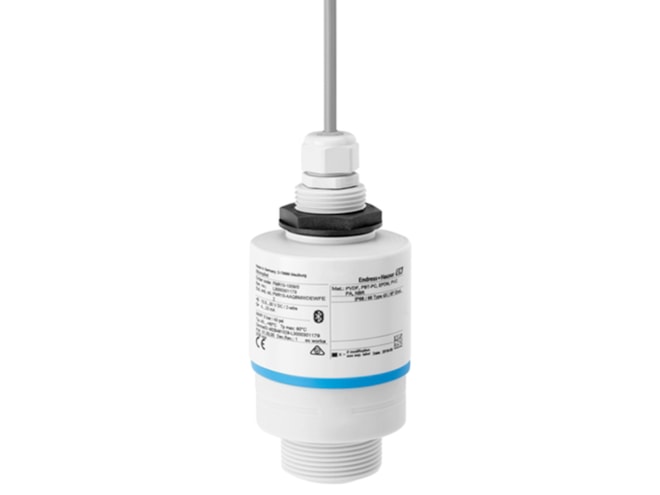

E+H Micropilot FMR10 Radar Level Transmitter

Continuous non-contact measurement, Bluetooth commissioning, operation and maintenance app.

Starting at $796.61
Effective August 22nd, 2025, Endress+Hauser has added a 8.4% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • Non-contact radar level measurement
  • -40 to 140°F (-40 to 60°C) temp range
  • -14.5 to 43psi (-1 to 3 bar) pressure range
  • Up to 8m (26ft) max measuring range
  • 0.2in (±5mm) accuracy
  • Bluetooth commissioning, operation, maintenance app
  • IP66, IP68 / NEMA4x /6P
  • PVDF body
  • Extended 5-year warranty, please contact an engineer for details

Common Use: Water and wastewater, storage tanks, pumps and lifts stations, sewer management, utilities, stormwater basin, and river and dam management


The E+H Micropilot FMR10 Radar Level Transmitter provides continuous non-contact level measurement and is a perfect application fit for the water & wastewater industry and utilities across all industries. The FMR10 belongs to the first radars with Bluetooth commissioning, operation and maintenance app. Signal curves can be shown via app on every Bluetooth enabled smartphone or tablet (iOS, Android). With the compact design, thanks to unique chip, the device is ideal for limited space applications.

E+H RIA452 Process Indicator
E+H RIA452 Process Indicator

Displays analog measured values with pump control and batch functions.

Mfg. has some models in stock
Starting at $1,035.29
E+H RIA46 Field Meter
E+H RIA46 Field Meter

Multifunctional field meter for monitoring and indication of analog measured values.

Some Models in Stock
Starting at $663.48
E+H RIA45 Process Meter
E+H RIA45 Process Meter

Multifunctional panel mounted process meter for monitoring and indication of analog measured values.

Mfg. has some models in stock
Starting at $532.27
E+H RIA15 Process Indicator
E+H RIA15 Process Indicator

Loop-powered 4 to 20 mA process indicator with optional HART® communication.

Some Models in Stock
Starting at $279.91
E+H 71325079 Mounting Bracket
E+H 71325079 Mounting Bracket

Adjustable 316L bracket for the Micropilot FMR10 and FMR20 radar level transmitter.

In Stock
$101.41
E+H FHX50 Remote Display
E+H FHX50 Remote Display

Transmitter electronics for radar level transmitters and vortex flow meters.

Mfg. has some models in stock
Starting at $781.24
E+H Flooding Protection Tubes
E+H Flooding Protection Tubes

Flood tubes narrow the beam angle in addition to allowing for level measurement even when the sensor is submerged.

Starting at $118.50
E+H 71452324 Installation Bracket
E+H 71452324 Installation Bracket

316L bracket for use with FMR level transmitters and FMU ultrasonic sensors.

$323.35
E+H FHX50B Remote Display
E+H FHX50B Remote Display

Level transmitter bluetooth display.

Mfg. has some models in stock
Starting at $723.81
Part Number Approval Process Connection Rear Side Process Connection Front Side Accessory Enclosed Price Available
FMR10-CAQBMVCEVEE2
Show Full Configuration
CSA C/US general purpose
Thread ASME MNPT1; PVDF; FNPT1/2 conduit connection
Thread ASME MNPT1-1/2; PVDF
Without
 $796.61 1 in stock
FMR10-CAQBMVCEWFE2
Show Full Configuration
CSA C/US general purpose
Thread ASME MNPT1; PVDF; FNPT1/2 conduit connection
Thread ISO228 G1-1/2; PVDF
Without
 $796.61 1 in stock

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number Approval Process Connection Rear Side Process Connection Front Side Accessory Enclosed Price Available
FMR10-CAQBMWDEVEE2
Show Full Configuration
CSA C/US general purpose
Thread G1 ISO228; PVDF
Thread ASME MNPT1-1/2; PVDF
Without
 $796.61 2 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
